Description
Potential distribution module; 4 potentials; with 19 connection points each
View AllClose
Electrical Data
- Operating voltage: nbsp;AC/DC 250 V
- Max. current per connection: 12 A
- Max. total current per potential: 32 A
Safety and protection:
- Rated voltage: 250 V
- Rated impulse voltage: 4 kV
- Pollution degree: 2
Connection Data
- Total number of potentials: 4
- Connection type (1): Power supply
- Mating direction: 45
- Connection technology: CAGE CLAMP<sup></sup>
- WAGO terminal: WAGO 745 Series
- Solid conductor: 0.2 6 mm / 24 10 AWG
- Fine-stranded conductor: 0.2 6 mm / 24 10 AWG
- Strip length: 11 12 mm / 0.43 0.47 inch
- Connection type (2): Connection points
- Mating direction 2: 45
- Connection technology 2: CAGE CLAMP<sup></sup>
- WAGO terminal 2: WAGO 739 Series
- Solid conductor (2): 0.08 2.5 mm / 28 12 AWG
- Fine-stranded conductor (2): 0.08 2.5 mm / 28 12 AWG
- Strip length (2): 8 9 mm / 0.31 0.35 inch
- Note (conductor cross-section): 12 AWG: THHN, THWN
Geometrical Data
- Width: 115 mm / 4.528 inch
- Height from upper-edge of DIN-35 rail: 45 mm / 1.772 inch
- Depth: 85 mm / 3.346 inch
Mechanical Data
- Type of mounting: DIN-35 rail
- Housing design: Mounting carrier
Material Data
- Fire load: 0.000 MJ
- Weight: 178.200 g
Environmental Requirements
- Surrounding air (operating) temperature: -20 50 C
- Surrounding air (storage) temperature: -40 80 C
Commercial data
- Packaging type: BOX
- Country of origin: DE
- GTIN: 4045454287092
- Customs Tariff No.: 85369010000

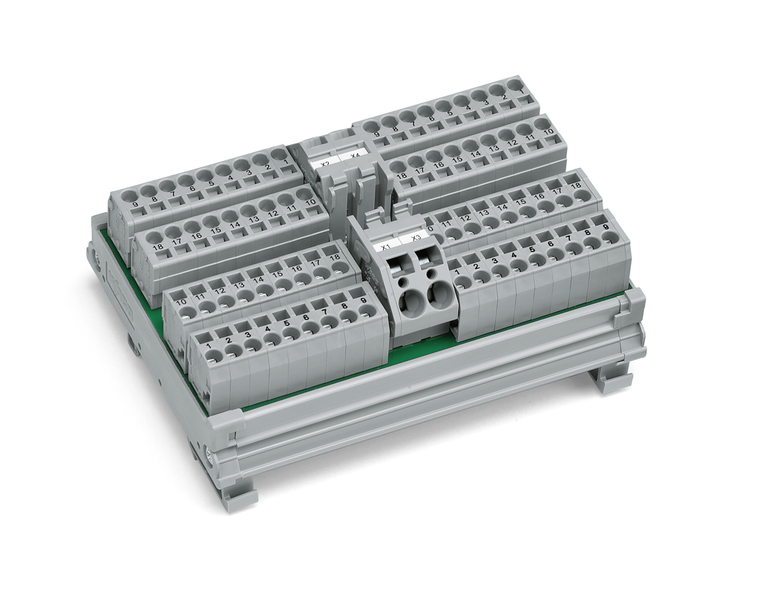

The WAGO 288 series potential distribution module features CAGE CLAMP spring connections and is designed for DIN-35 rail mounting with a width of 115mm. It is equivalent to the model number 288837.
