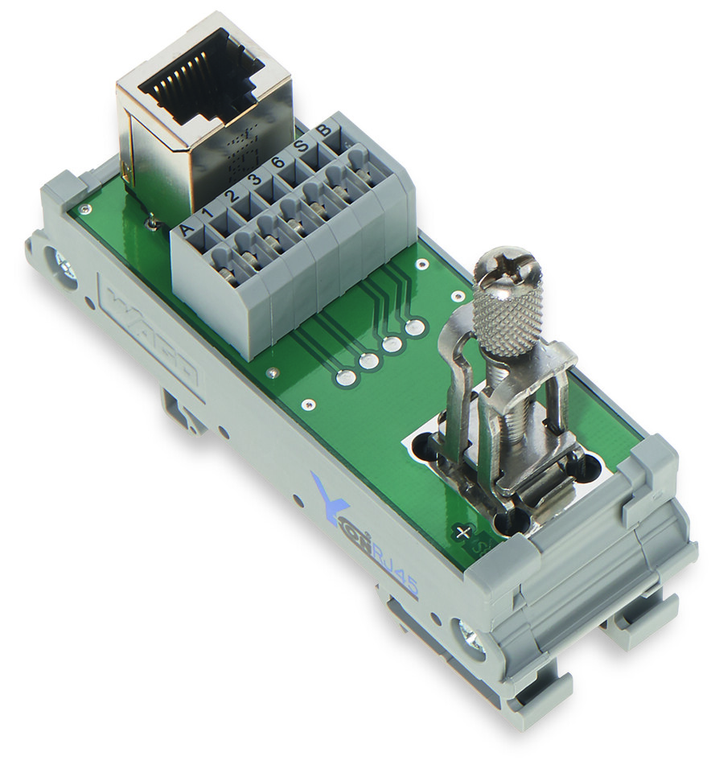

Interface module for ETHERNET Y-ConJack-22
Electrical Data
- Operating voltage: nbsp;AC 35 V; nbsp;DC 50 V
- Nominal current: 2.1 A
- Insulation resistance: nbsp;500 M
- Specialty functions: With shield clamping saddle
Safety and protection:
- Dielectric strength contact-contact (AC, 1 min): 1 kV<sub>rms</sub>
Connection Data
- Connection type (1): System
- No. of poles: 10
- Pluggable connector: RJ-45 shielded; with two additional power jumper contacts
- Connection type (2): System
- No. of poles 2: 7
- Design 2: PCB terminal blocks
- Connection technology 2: CAGE CLAMP<sup></sup>
- WAGO terminal 2: WAGO 739 Series
- Solid conductor (2): 0.08 1.5 mm / 28 14 AWG
- Fine-stranded conductor (2): 0.08 1.5 mm / 28 14 AWG
- Strip length (2): 5 6 mm / 0.2 0.24 inch
- Mating cycles: 1000
- Max. transmission length: 100 m
- Connecting cable: min. Cat. 5
- WAGO shield (screen) clamping saddle: 11 mm wide; cable diameter up to 8 mm
Geometrical Data
- Width: 30 mm / 1.181 inch
- Height from upper-edge of DIN-35 rail: 67 mm / 2.638 inch
- Depth: 85 mm / 3.346 inch
Mechanical Data
- Type of mounting: DIN-35 rail
- Housing design: Mounting carrier
Material Data
- Fire load: 0.000 MJ
- Weight: 51.732 g
Environmental Requirements
- Surrounding air (operating) temperature: -40 85 C (Actuation: -35 +85 C)
- Surrounding air (storage) temperature: -40 85 C
- Relative humidity: nbsp;85% (non condensing)
Commercial data
- Packaging type: BOX
- Country of origin: DE
- GTIN: 4045454326142
- Customs Tariff No.: 85369010000
The WAGO 289 series interface module features 2 power jumper contacts, a shielded connection, and a shielded clamping saddle, all housed in a mounting carrier. It includes a 10-pole configuration with an RJ45 8-pin connector and a 7-pin spring CAGE CLAMP suitable for 0.08 to 1.5mm² cables. The module supports a rated current of 2.1A and is designed for DIN-35 rail mounting with a 30mm width. It operates within an ambient temperature range of -40°C to +85°C and is equivalent to model 289178.
- connection cable:
- Cat. 5 (min.)
- connection technology 2:
- CAGE CLAMP
- connection type 1:
- System
- connection type 2:
- System
- country of origin sales organisation germany:
- DE
- depth from upper edge of din rail:
- 67 mm / 2.638 inch
- design 2:
- PCB terminal blocks
- dielectric strength contact contact ac 1 min:
- 1 kVrms
- fine stranded conductor 2:
- 0.08 1.5 mm / 28 14 AWG
- fire load:
- 0.554 MJ
- height:
- 85 mm / 3.346 inch
- housing design:
- Mounting carrier
- insulation resistance:
- 500 M
- mating cycles:
- 1000
- mounting type:
- DIN-35 rail
- nominal current:
- 2.1 A
- operating voltage:
- ¤35 VAC: ¤50 VDC
- packaging type:
- Box
- pluggable connectors:
- RJ-45 (shielded): with two additional power contacts
- pole no:
- 10
- pole number 2:
- 7
- relative humidity:
- ¤ 85% (non-condensing)
- solid conductor 2:
- 0.08 1.5 mm / 28 14 AWG
- specialty functions:
- With power jumper contacts || With shield connection || With shield clamping saddle
- strip length 2:
- 5 6 mm / 0.2 0.24 inch
- surrounding air temperature operation:
- -40 85 C (Actuation: 35 +85 C)
- surrounding air temperature storage:
- -40 85 C
- transmission length max:
- 100 m
- wago connector 2:
- WAGO 739 Series
- wago shield clamping saddle:
- 11 mm wide: cable diameter up to 8 mm
- weight:
- 51.732 g
- width:
- 30 mm / 1.181 inch
