Wago

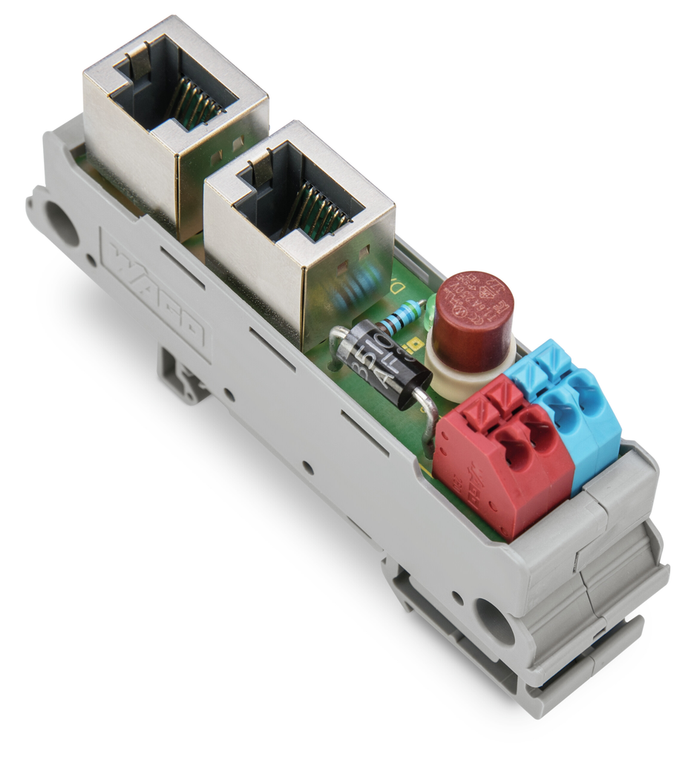

WAGO 289-196 Pack of 5

SKU:

289-196

UPC:

MPN:

289-196

Condition:

New

connection cable:

Cat. 5 (min.)

connection technology 3:

Push-in CAGE CLAMP

connection type 1:

System

connection type 2:

System

connection type 3:

Power supply

connector 2:

RJ-45 (shielded)

country of origin sales organisation germany:

DE

depth from upper edge of din rail:

51 mm / 2.007 inch

dielectric strength contact contact ac 1 min:

1 kVrms

fine stranded conductor 3:

0.2 1.5 mm / 24 16 AWG

fire load:

0.492 MJ

height:

85 mm / 3.346 inch

housing design:

Mounting carrier

insulation resistance:

500 M

mating cycles:

500

mounting type:

DIN-35 rail

nominal current:

1.5 A

operating voltage:

¤48 VDC

packaging type:

Box

pluggable connectors:

RJ-45 (shielded)

pole no:

8

pole number 2:

8

pole number 3:

4

relative humidity:

¤ 85% (non-condensing)

solid conductor 3:

0.2 1.5 mm / 24 16 AWG

specialty functions:

Passive PoE injector || With LED, fuse

strip length 3:

8.5 9.5 mm / 0.33 0.37 inch

surrounding air temperature operation:

0 70 C

surrounding air temperature storage:

-40 85 C

transmission length max:

100 m

wago connector 3:

WAGO 250 Series

weight:

32.000 g

width:

20.5 mm / 0.807 inch
