Interface module; Pluggable connector per DIN 41612; 64-pole; Mating connector for solder connection; Vertical mounting; PCB terminal blocks, double-row; with mounting feet; Type C; 2,50 mm².

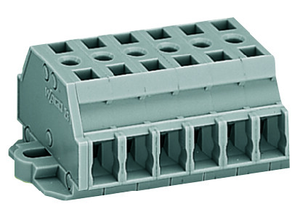

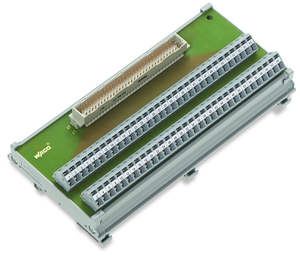

The WAGO 289 series interface module is a stand-alone PCB with mounting feet, featuring a 64-pole (64P) DIN 41612 Type C 64-pin male connector for system connections and a 2-row spring CAGE CLAMP for 0.08 to 2.5mm² cables for field connections. It supports a rated current of 1A, is designed for DIN-35 rail mounting with a width of 187mm, and operates in ambient temperatures ranging from -20°C to +50°C. This module is equivalent to the model 289426.
- connection technology 2:
- CAGE CLAMP
- connection type 1:
- System
- connection type 2:
- Field
- contact material connector:
- Copper alloy: gold plated
- contact resistance max:
- 20 m
- country of origin sales organisation germany:
- DE
- depth from upper edge of din rail:
- 21 mm / 0.827 inch
- design 2:
- PCB terminal blocks (double-row)
- fine stranded conductor 2:
- 0.08 2.5 mm / 28 12 AWG
- fire load:
- 0.081 MJ
- for mating connector:
- With solder contact
- height:
- 63.5 mm / 2.5 inch
- housing design:
- PCB with mounting feet
- mating direction:
- Vertical
- mounting type:
- DIN-35 rail
- nominal current:
- 0.0416666666666667
- note conductor cross section:
- 12 AWG: THHN, THWN
- note on protection type:
- Notice! Live parts can be easily touched! Protection against direct contact must be provided by the equipment manufacturer, e.g., using a WAGO 709 Series Cover (see Accessories) or a similar cover. The installation guidelines must be observ
- operating voltage:
- ¤30 VAC: ¤50 VDC
- packaging type:
- Box
- performance level:
- 2 / 400 mating cycles
- pluggable connectors:
- Pluggable connector per DIN 41612: Type C: Male connector
- pole no:
- 64
- pole number 2:
- 64
- pollution degree:
- 2
- protection type:
- IP00*
- rated surge voltage:
- 0.8 kV
- rated voltage:
- 50 V
- relative humidity:
- ¤ 85% (non-condensing)
- solid conductor 2:
- 0.08 2.5 mm / 28 12 AWG
- strip length 2:
- 5 6 mm / 0.2 0.24 inch
- surrounding air temperature operation:
- -20 50 C
- surrounding air temperature storage:
- -40 70 C
- wago connector 2:
- WAGO 236 Series
- weight:
- 111.933 g
- width:
- 187 mm / 7.362 inch
