Wago

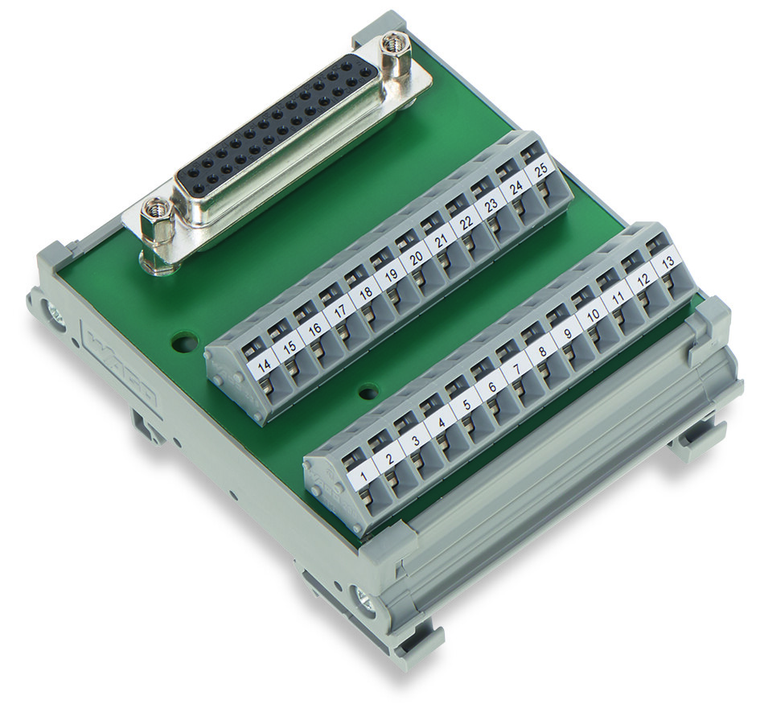

WAGO 289-555

SKU:

289-555

UPC:

MPN:

289-555

Condition:

New

connection technology 2:

CAGE CLAMP

connection type 1:

System

connection type 2:

Field

contact material connector:

Au over Ni

contact resistance max:

30 m

country of origin sales organisation germany:

DE

depth from upper edge of din rail:

34 mm / 1.339 inch

design 2:

PCB terminal blocks (double-row)

fine stranded conductor 2:

0.08 2.5 mm / 28 12 AWG

fire load:

0.600 MJ

for mating connector:

With solder contact

height:

85 mm / 3.346 inch

housing design:

Mounting carrier

mating direction:

Vertical

mounting type:

DIN-35 rail

nominal current:

0.0833333333333333

note conductor cross section:

12 AWG: THHN, THWN

operating altitude max:

2000 m

operating voltage:

¤ AC/DC 125 V

packaging type:

Box

performance level:

2 / 200 mating cycles

pluggable connectors:

D-sub female connector

pole no:

9

pole number 2:

9

pollution degree:

2

protection type:

IP20

rated surge voltage:

0.8 kV

rated voltage:

125 V

relative humidity:

¤ 85% (non-condensing)

solid conductor 2:

0.08 2.5 mm / 28 12 AWG

standards specifications:

EN 61010-2-201

strain relief:

UNC 4-40 stud bolt

strip length 2:

5 6 mm / 0.2 0.24 inch

surrounding air temperature operation:

-20 50 C

surrounding air temperature storage:

-40 70 C

wago connector 2:

WAGO 236 Series

weight:

46.800 g

width:

38 mm / 1.496 inch
