Wago

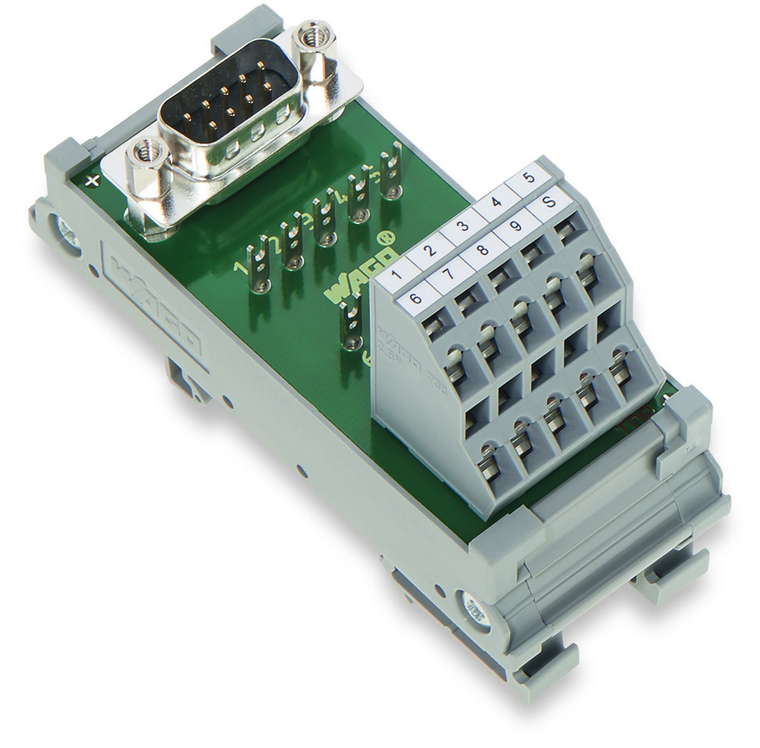

WAGO 289-721

(No reviews yet) Write a Review

Write a Review

Wago

WAGO 289-721

Rating Required Select Rating 1 star (worst) 2 stars 3 stars (average) 4 stars 5 stars (best)

Name

Email Required

Review Subject Required

Comments Required

SKU:

289-721

UPC:

MPN:

289-721

Condition:

New

connection technology 2:

CAGE CLAMP

connection type 1:

System

connection type 2:

Field

contact material connector:

Au over Ni

contact resistance max:

30 m

country of origin sales organisation germany:

DE

depth from upper edge of din rail:

48 mm / 1.89 inch

design 2:

PCB terminal blocks (double-deck)

fine stranded conductor 2:

0.08 2.5 mm / 28 12 AWG

fire load:

0.659 MJ

for mating connector:

With solder contact

height:

85 mm / 3.346 inch

housing design:

Mounting carrier

mating direction:

Vertical

mounting type:

DIN-35 rail

nominal current:

0.0833333333333333

note:

One solder terminal per pole is available for testing and patching (except for shield contact).

note conductor cross section:

12 AWG: THHN, THWN

note on protection type:

Notice! Live parts can be easily touched! Protection against direct contact must be provided by the equipment manufacturer, e.g., using a WAGO 709 Series Cover (see Accessories) or a similar cover. The installation guidelines must be observ

operating voltage:

¤30 VAC: ¤50 VDC

packaging type:

Box

performance level:

2 / 200 mating cycles

pluggable connectors:

HD D-sub male connector

pole no:

15

pole number 2:

16

pollution degree:

2

protection type:

IP00*

rated surge voltage:

0.8 kV

rated voltage:

50 V

relative humidity:

¤ 85% (non-condensing)

solid conductor 2:

0.08 2.5 mm / 28 12 AWG

specialty functions:

With solder pin || With shield connection

strain relief:

UNC 4-40 stud bolt

strip length 2:

5 6 mm / 0.2 0.24 inch

surrounding air temperature operation:

-20 50 C

surrounding air temperature storage:

-40 70 C

wago connector 2:

WAGO 736 Series

weight:

64.407 g

width:

43.5 mm / 1.713 inch
