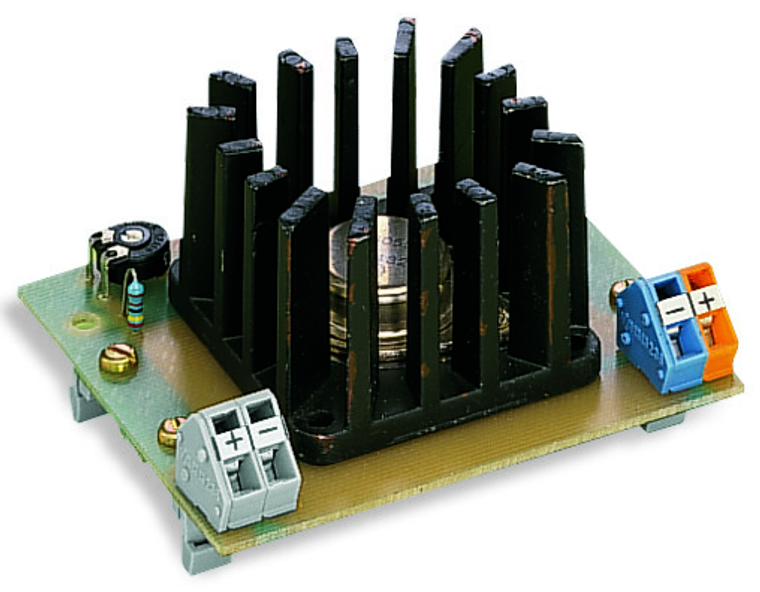

WAGO 289-907 constant voltage source, 24 VDC output, 3 A output current, 2735 VDC input voltage, with mounting feet
Wago
$101.80
Constant voltage source; 27
35 VDC input voltage; 24 VDC output voltage; 3 A output current; with mounting feet.
The WAGO 289 series constant DC voltage source module provides a 24Vdc output at 3A with a power rating of 48W, accepting an input voltage range of 27-35Vdc. It features CAGE CLAMP spring connections and is designed for DIN-35 rail mounting with a width of 78.5mm. The module operates in ambient temperatures ranging from -25°C to +40°C and is equivalent to model 289907.
- conformity marking:
- CE
- connection technology:
- CAGE CLAMP
- country of origin sales organisation germany:
- DE
- depth:
- 66 mm / 2.598 inch
- fine stranded conductor:
- 0.08 2.5 mm / 28 12 AWG
- fire load:
- 0.054 MJ
- height from upper edge of din rail:
- 39 mm / 1.535 inch
- input voltage range:
- DC 27 35 V
- mounting type:
- DIN-35 rail
- nominal mains frequency range:
- 0 Hz
- nominal output current io nom:
- 0.125
- nominal output voltage uo nom:
- DC 24 V
- note conductor cross section:
- 12 AWG: THHN, THWN
- output voltage range:
- 10 %
- packaging type:
- Box
- pollution degree:
- 2
- protection type:
- IP00 (per EN 60529)
- series operation:
- No
- solid conductor:
- 0.08 2.5 mm / 28 12 AWG
- strip length:
- 5 6 mm / 0.2 0.24 inch
- surrounding air temperature operation:
- -25 40 C
- wago connector:
- WAGO 236 Series
- weight:
- 170.704 g
- width:
- 78.5 mm / 3.091 inch
