WAGO 289-966 Interface Module with 2xRJ-45 Connectors and Shield Connection
Wago
$157.80

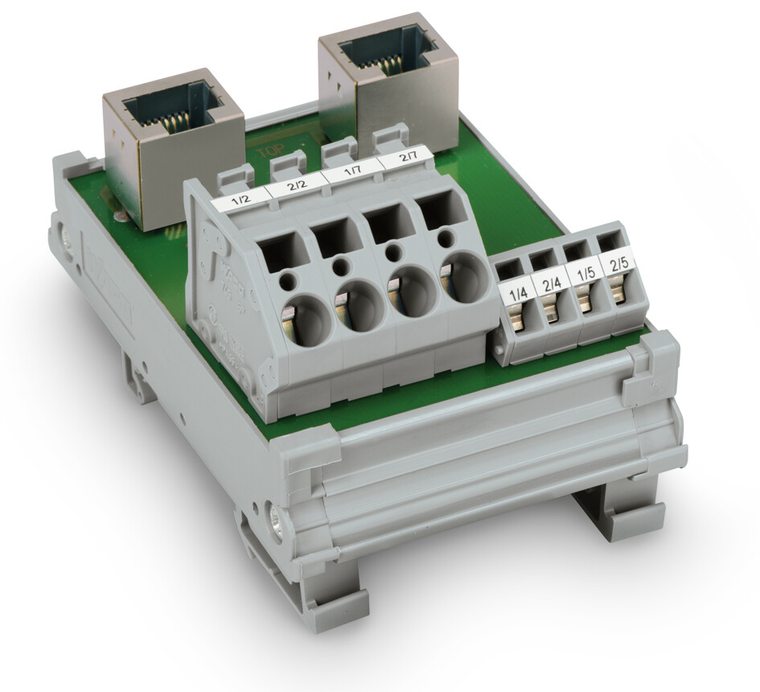

Interface module with RJ-45 connectors and shield clamping saddle.
The WAGO 289 series interface module for current sensors features shielded connections and is designed for mounting on a DIN-35 rail. It includes two RJ45 8-pin connectors and spring CAGE CLAMP terminals: an 8-pin for 0.08 to 2.5mm² cables and a 4-pin for 0.2 to 6mm² cables. The module supports a rated current of 1.5A and operates within an ambient temperature range of -20°C to +85°C. It is equivalent to model 289966 and has a width of 69mm.
- connection cable:
- Shielded RJ-45 cable assembly (recommended: UTP, STP)
- connection technology 2:
- CAGE CLAMP
- connection technology 3:
- CAGE CLAMP
- connection type 1:
- System
- connection type 2:
- Clamping units 2, 7
- connection type 3:
- Clamping units 4, 5
- country of origin sales organisation germany:
- DE
- depth from upper edge of din rail:
- 40 mm / 1.575 inch
- design 2:
- PCB terminal blocks
- design 3:
- PCB terminal blocks
- dielectric strength contact contact ac 1 min:
- 0.5 kVrms
- fine stranded conductor 2:
- 0.08 2.5 mm / 28 12 AWG
- fine stranded conductor 3:
- 0.2 6 mm / 24 10 AWG
- fire load:
- 0.788 MJ
- height:
- 85 mm / 3.346 inch
- housing design:
- Mounting carrier
- insulation resistance:
- 500 M
- mating cycles:
- 500
- mounting type:
- DIN-35 rail
- nominal current:
- 1.5 A
- note conductor cross section:
- 12 AWG: THHN, THWN
- packaging type:
- Box
- pluggable connectors:
- 2 x RJ-45 (shielded)
- pole no:
- 8
- pole number 2:
- 8
- pole number 3:
- 4
- solid conductor 2:
- 0.08 2.5 mm / 28 12 AWG
- solid conductor 3:
- 0.2 6 mm / 24 10 AWG
- specialty functions:
- With shield connection || With shield clamping saddle
- strip length 2:
- 5 6 mm / 0.2 0.24 inch
- strip length 3:
- 11 12 mm / 0.43 0.47 inch
- surrounding air temperature operation:
- -20 85 C
- wago connector 2:
- WAGO 236 Series
- wago connector 3:
- WAGO 745 Series
- wago shield clamping saddle:
- 27 mm wide: cable diameter up to 24 mm
- weight:
- 106.900 g
- width:
- 69 mm / 2.717 inch
