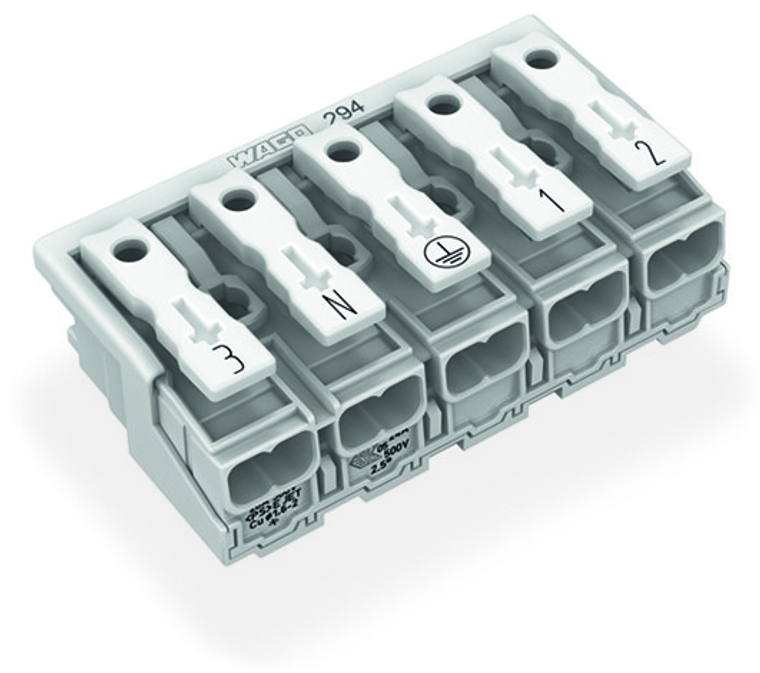

WAGO 294-5055

(No reviews yet) Write a Review

Write a Review

Wago

WAGO 294-5055

Rating Required Select Rating 1 star (worst) 2 stars 3 stars (average) 4 stars 5 stars (best)

Name

Email Required

Review Subject Required

Comments Required

SKU:

294-5055

UPC:

MPN:

294-5055

Condition:

New

actuation type:

Operating tool || Push-button

clamping spring material:

Chrome nickel spring steel (CrNi)

color:

White

connectable conductor materials:

Copper

connection technology:

Push-in CAGE CLAMP

connection technology 2:

PUSH WIRE

connection type 1:

External 1

connection type 2:

Internal 2

connection type 3:

Internal 3

connection type 4:

Internal 4

contact material:

Electrolytic copper (ECu)

contact plating:

Tin-plated

country of origin sales organisation germany:

CH

depth:

27.3 mm / 1.075 inch

fine stranded conductor:

0.5 2.5 mm / 18 14 AWG

fine stranded conductor with ferrule push in termination:

0.5 mm / 18 AWG

fine stranded conductor with insulated ferrule:

0.5 1.5 mm / 18 16 AWG

fine stranded conductor with insulated ferrule 2:

0.5 1 mm / 18 16 AWG

fine stranded conductor with insulated ferrule 3:

0.5 0.75 mm / 18 AWG

fine stranded conductor with uninsulated ferrule:

0.5 1.5 mm / 18 16 AWG

fine stranded conductor with uninsulated ferrule 2:

0.5 1.5 mm / 18 14 AWG

fine stranded conductor with uninsulated ferrule 3:

0.5 1 mm / 18 AWG

fire load:

0.302 MJ

flammability class per ul94:

V0

height from the surface:

17 mm / 0.669 inch

insulation material:

Polycarbonate (PC)

legend ratings:

(II / 2) Overvoltage category II / Pollution degree 2

marking:

3-N--1-2

material group:

IIIa

mounting type:

Snap-in foot

nominal voltage ii 2:

500 V

number of connection points:

2

number of connection points 2:

1

number of connection points 3:

1

number of connection points 4:

1

packaging type:

Lamination

pin spacing:

10 mm / 0.394 inch

pole no:

5

rated current:

24 A

rated current 2:

24 A

rated current 3:

16 A

rated surge voltage ii 2:

4 kV

rated surge voltage ii 2 2:

4 kV

rated voltage ii 2 2:

500 V

ratings note:

Connection points

ratings note 2:

Connection points

ratings per:

IEC/EN 60998-1 || IEC/EN 60998-2-2

solid conductor:

0.5 2.5 mm / 18 12 AWG

solid conductor 2:

0.5 2.5 mm / 18 14 AWG

solid conductor 3:

0.5 1.5 mm / 18 16 AWG

solid conductor 4:

0.5 0.75 mm / 18 AWG

solid conductor push in termination:

0.5 2.5 mm / 18 12 AWG

stranded conductor:

0.5 2.5 mm / 18 14 AWG

strip length:

8 9 mm / 0.31 0.35 inch

strip length 2:

8 9 mm / 0.31 0.35 inch

t marking:

T85

temperature stability:

120 C

weight:

15.239 g

width:

50 mm / 1.969 inch

wiring direction:

Side-entry wiring
