Wago 294-8032

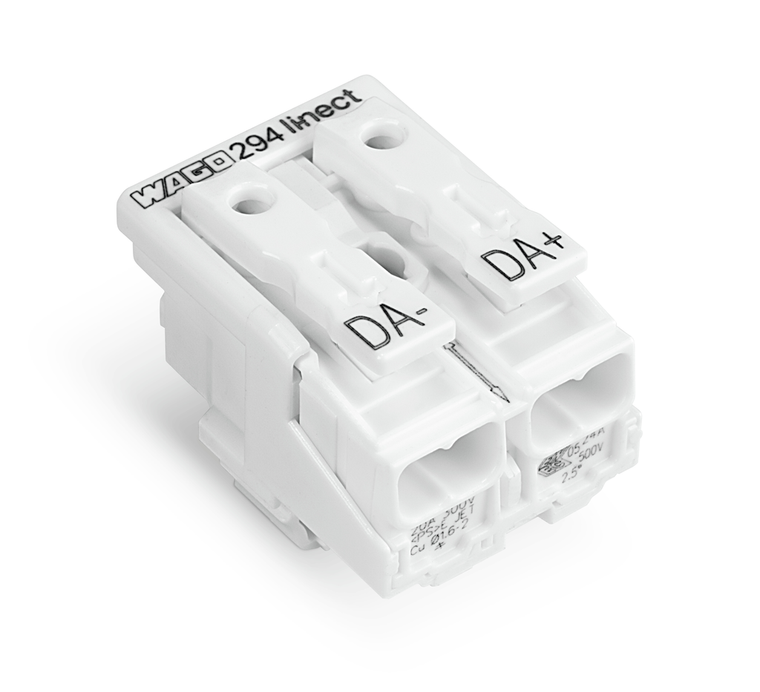

WAGO 294-8032 Lighting Connector, Push-Button, 2-Pole, 24A, 500V, Panel Mount

Wago
SKU:
294-8032
Availability:
Factory stock
$1.33
Condition:
New
Current Stock:
Description
Lighting connector; push-button, external; for Linect; without ground contact; 2-pole; Cod. I; Lighting side: for solid conductors; Inst. side: for all conductor types; max. 2.5 mm²; Surrounding air temperature: max 85°C (T85); 1,50 mm²; white.

The WAGO component equivalent to 2948032 is a specific type of electrical connector or terminal block used for various wiring applications. It is designed to provide secure and reliable connections in electrical circuits, ensuring efficient conductivity and safety. This component is typically used in industrial automation, building technology, and other electrical installations where dependable connections are crucial. The equivalent WAGO component offers similar functionality and performance characteristics, making it a suitable alternative for applications requiring the 2948032 specification.

Additional Information
actuation type:
Push-button
actuation type 2:
Push-in
actuation type 3:
Push-in
actuation type 4:
Push-in
clamping spring material:
Chrome nickel spring steel (CrNi)
Color:
White
connection technology:
Push-in CAGE CLAMP«
connection technology 2:
PUSH WIRE«
connection technology 3:
PUSH WIRE«
connection technology 4:
PUSH WIRE«
connection type 1:
External 1
connection type 2:
Internal 2
connection type 3:
Internal 3
connection type 4:
Internal 4
contact material:
Electrolytic copper (ECu)
contact plating:
Tin-plated
country of origin sales organisation germany:
CH
depth:
27.3 mm / 1.075 inch
fine stranded conductor:
0.5 ƒƒ‡ª 2.5 mm / 18 ƒƒ‡ª 14 AWG
fine stranded conductor with ferrule push in termination:
0.5 mm / 18 AWG
fine stranded conductor with insulated ferrule:
0.5 ƒƒ‡ª 1.5 mm / 18 ƒƒ‡ª 16 AWG
fine stranded conductor with insulated ferrule 2:
0.5 ƒƒ‡ª 1 mm / 18 ƒƒ‡ª 14 AWG
fine stranded conductor with insulated ferrule 3:
0.5 ƒƒ‡ª 0.75 mm / 18 AWG
fine stranded conductor with uninsulated ferrule:
0.5 ƒƒ‡ª 1.5 mm / 18 ƒƒ‡ª 16 AWG
fine stranded conductor with uninsulated ferrule 2:
0.5 ƒƒ‡ª 1.5 mm / 18 ƒƒ‡ª 16 AWG
fine stranded conductor with uninsulated ferrule 3:
0.5 ƒƒ‡ª 1 mm / 18 ƒƒ‡ª 14 AWG
fire load:
0.134 MJ
flammability class per ul94:
V0
height:
22.4 mm / 0.882 inch
height from the surface:
17 mm / 0.669 inch
insulation material:
Polycarbonate (PC)
legend ratings:
(III / 2) ƒƒ«ƒƒ– Overvoltage category III / Pollution degree 2
marking:
DA- DA+
material group:
IIIa
nominal voltage ii 2:
500 V
number of connection points:
2
number of connection points 2:
1
number of connection points 3:
1
number of connection points 4:
1
packaging type:
Lamination
pin spacing:
10 mm / 0.394 inch
pole no:
2
rated current:
24 A
rated current 2:
24 A
rated current 3:
16 A
rated surge voltage ii 2:
4 kV
rated surge voltage ii 2 2:
4 kV
rated surge voltage ii 2 3:
4 kV
rated voltage ii 2 2:
500 V
rated voltage ii 2 3:
500 V
ratings note:
Connection points
ratings note 2:
Connection points
ratings note 3:
Linect« plug-in connection
ratings per:
IEC/EN 60998-1 || IEC/EN 60998-2-2
ratings per 3:
IEC/EN 61984
solid conductor:
0.5 ƒƒ‡ª 2.5 mm / 18 ƒƒ‡ª 12 AWG
solid conductor 2:
0.5 ƒƒ‡ª 2.5 mm / 18 ƒƒ‡ª 14 AWG
solid conductor 3:
0.5 ƒƒ‡ª 1.5 mm / 18 ƒƒ‡ª 16 AWG
solid conductor 4:
0.5 ƒƒ‡ª 0.75 mm / 18 AWG
solid conductor push in termination:
0.5 ƒƒ‡ª 2.5 mm / 18 ƒƒ‡ª 12 AWG
stranded conductor:
0.5 ƒƒ‡ª 2.5 mm / 18 ƒƒ‡ª 14 AWG
strip length:
8 ƒƒ‡ª 9 mm / 0.31 ƒƒ‡ª 0.35 inch
strip length 2:
8 ƒƒ‡ª 9 mm / 0.31 ƒƒ‡ª 0.35 inch
strip length 3:
8 ƒƒ‡ª 9 mm / 0.31 ƒƒ‡ª 0.35 inch
strip length 4:
8 ƒƒ‡ª 9 mm / 0.31 ƒƒ‡ª 0.35 inch
t marking:
T85
technology:
Linect
temperature stability:
120 C
weight:
6.543 g
width:
20 mm / 0.787 inch
