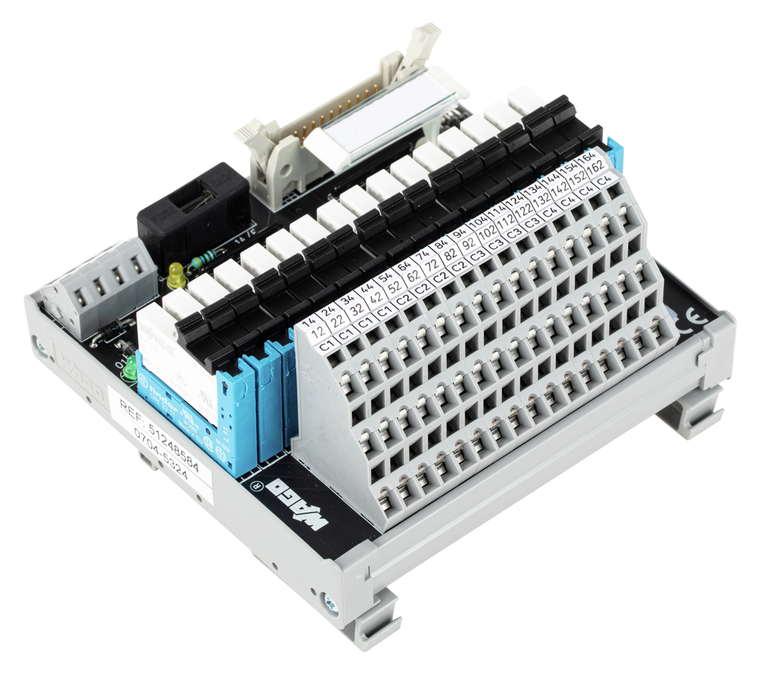

WAGO 704-5324

SKU:

704-5324

UPC:

MPN:

704-5324

Condition:

New

compatible plc i o card types:

6ES7 313-5BE01-0AB0 || 6ES7 313-5BG04-0AB0 || 6ES7 313-6BE01-0AB0 || 6ES7 313-6BF03-0AB0 || 6ES7 313-6CE01-0AB0 || 6ES7 313-6CF03-0AB0 || 6ES7 314-6BF01-0AB0 || 6ES7 314-6BG03-0AB0 || 6ES7 314-6CF01-0AB0 || 6ES7 314-6CG03-0AB0 || 6ES7 322-1BH01-0AA0

compatible plc modules:

Siemens S7-300 || Siemens S7-400 || Siemens S7-1500 || GE Fanuc 9030 || GE Fanuc RX3i || Schneider Modicon TM3 || Schneider TSX || Schneider Twido || Schneider Modicon M340 || Schneider Modicon Quantum || Rockwell Compact Logix || Rockwell Control Lo

connection type 1:

System

connection type 2:

Field

connection type 3:

Supply

contact material relay:

AgSnO2

country of origin sales organisation germany:

DE

depth from upper edge of din rail:

65 mm / 2.559 inch

design 2:

PCB terminal blocks (triple-deck)

design 3:

PCB terminal blocks

dielectric strength control load circuit ac 1 min:

4 kVrms

dielectric strength load load circuit ac 1 min:

1 kVrms

fine stranded conductor 2:

0.08 2.5 mm / 28 12 AWG

fine stranded conductor 3:

0.08 2.5 mm / 28 12 AWG

fire load:

12.720 MJ

height:

105 mm / 4.134 inch

inputs outputs:

16-channel relay output

internal fuse:

Supply: 1 A: Relay output: 1 A

limiting continuous current:

0.208333333333333

mating direction:

Vertical

mechanical life:

10 x 106 switching operations

mounting type:

DIN-35 rail

nominal operating voltage:

DC 24 V

note:

Independent of the relay used, the maximum continuous current of the common switchover contacts is 12 A.

number of changeover switchover contacts:

1

operating voltage range:

10 %

packaging type:

Box

pluggable connectors:

DIN 41651 male connector

pole no:

20

pole number 1:

20

pole number 2:

48

pole number 3:

4

pollution degree:

2

rated surge voltage:

0.8 kV

rated voltage:

50 V

relative humidity:

¤ 85% (non-condensing)

solid conductor 2:

0.08 2.5 mm / 28 12 AWG

solid conductor 3:

0.08 2.5 mm / 28 12 AWG

specialty functions:

Common switchover contacts of 4 relays

status indicator:

Green LED (channel) || Yellow LED (power supply)

strip length 2:

5 6 mm / 0.2 0.24 inch

strip length 3:

5 6 mm / 0.2 0.24 inch

surrounding air temperature operation:

-25 40 C

surrounding air temperature storage:

-40 70 C

switching power resistive max:

AC 1250 VA: DC 50 W

switching voltage max:

AC 250 V: DC 48 V

wago basic relay:

857-152

wago connector 2:

WAGO 737 Series

wago connector 3:

WAGO 236 Series

weight:

419.546 g

width:

111 mm / 4.37 inch
