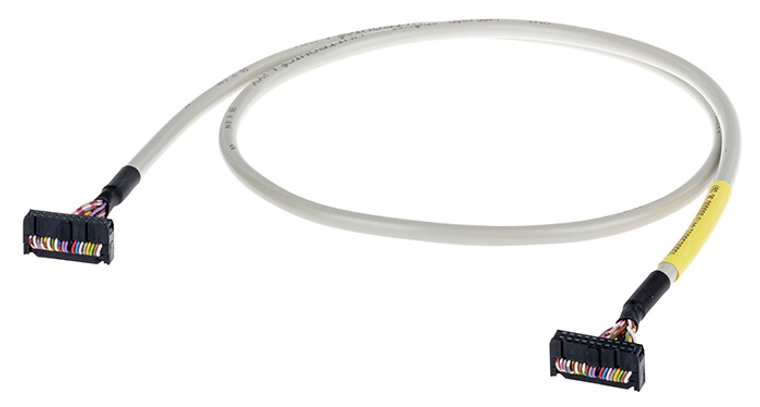

WAGO 706-150/316-300 16-Pin Sensor-Actuator Patch Cord, 3m
Wago
$86.02
Connection cable; 16-pole; Pluggable connector per DIN 41651; 16-pole; Pluggable connector per DIN 41651; Length: 3 m; Conductor cross-section: 0.14 mm².
The WAGO component equivalent to 706150316300 is a specific part used in electrical and automation systems, known for its reliability and efficiency. This component is designed to facilitate secure and efficient electrical connections, often utilized in various industrial and commercial applications. It ensures optimal performance and safety, adhering to industry standards and specifications.
- cable length:
- 3 m
- cable type:
- LiYY
- color code:
- Per DIN VDE 47100
- connection type 1:
- System
- connection type 2:
- System
- connector 2:
- Pluggable connector per DIN 41651: Female connector
- country of origin sales organisation germany:
- FR
- current per wire max:
- 0.0416666666666667
- fire load:
- 0.000 MJ
- note:
- When using more than 10 wires, the maximum current per wire must be reduced to 0.7 A.
- operating voltage:
- ¤ AC/DC 35 V
- packaging type:
- Bag
- pluggable connectors:
- Pluggable connector per DIN 41651: Female connector
- pole no:
- 16
- pole number 1:
- 16
- pole number 2:
- 16
- surrounding air temperature operation:
- -25 50 C
- weight:
- 303.000 g
- wire cross section:
- 0.25 mm
