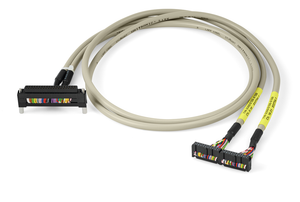

WAGO 706-2300/405-200
Wago
$536.30
S-Cable S7-300 A8EU1.
The WAGO component equivalent to 7062300405200 is a specific part used in electrical and automation systems, known for its reliability and efficiency. This component is designed to facilitate secure and efficient electrical connections, often utilized in various industrial and commercial applications. It ensures optimal performance and safety, adhering to industry standards and specifications.
- cable length:
- 2 m
- cable type:
- LiYCY
- color code:
- Per DIN VDE 47100
- compatible plc i o card types:
- 6ES7 331-7NF00-0AB0
- compatible plc modules:
- Siemens S7-300
- connection type 1:
- System
- connection type 2:
- System
- connector 2:
- Siemens 6ES7-392-1BM00-0AA0
- country of origin sales organisation germany:
- FR
- current per wire max:
- 0.0833333333333333
- fire load:
- 0.000 MJ
- inputs outputs:
- 8 analog inputs: voltage
- note:
- When using more than 10 wires, the maximum current per wire must be reduced to 1 A.
- operating voltage:
- ¤ AC/DC 35 V
- pluggable connectors:
- D-sub female connector
- pole number 1:
- 25
- pole number 2:
- 40
- surrounding air temperature operation:
- -20 50 C
- weight:
- 317.000 g
- wire cross section:
- 0.25 mm
