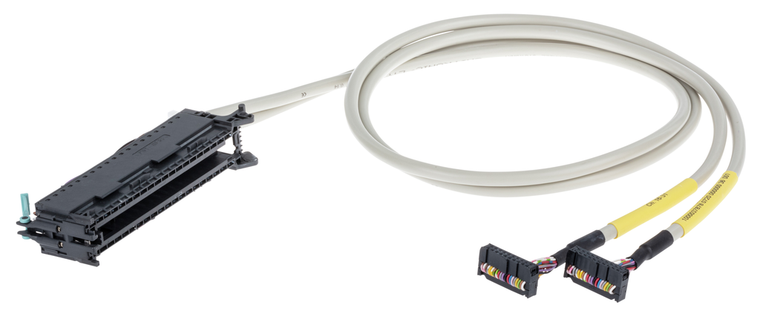

WAGO 706-2500/102-300

SKU:

706-2500/102-300

UPC:

MPN:

706-2500/102-300

Condition:

New

cable length:

3 m

cable type:

LiYY

color code:

Per DIN VDE 47100

compatible plc i o card types:

6ES7 521-1FH00-0AA0

compatible plc modules:

Siemens S7-1500

connection type 1:

System

connection type 2:

System

connection type 3:

System

connector 2:

WAGO 231 Series

connector 3:

Siemens 6ES7-592-1BM00-0XB0

country of origin sales organisation germany:

FR

current per wire max:

0.75 A

fire load:

0.000 MJ

inputs outputs:

16 digital inputs: for higher voltages

note:

If less than 3 channels used at the same time, the maximum current per wire 2 A and up to 5 A (amb. T 30 C) or 3.5 A (amb. T 50 C) on the power supply pins N/L. If more than 3 channels used at the same time, the maximum current per wire 0.75 A an

operating voltage:

¤ AC/DC 250 V

packaging type:

Bag

pluggable connectors:

WAGO 231 Series

pole number 1:

10

pole number 2:

10

pole number 3:

40

surrounding air temperature operation:

-20 50 C

weight:

993.000 g

wire cross section:

0.34 mm
