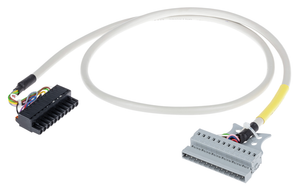

S-Cable MODICON TM3 T8EHT.
The WAGO component equivalent to 7063033102200 is a specific part used in electrical and automation systems. It is designed to provide reliable and efficient connectivity solutions, ensuring secure and stable connections in various applications. This component is known for its high quality, durability, and compatibility with other WAGO products, making it a preferred choice for professionals in the industry.
- cable length:
- 2 m
- cable type:
- LiYY
- color code:
- Per DIN VDE 47100
- compatible plc i o card types:
- TM3 DI8A
- compatible plc modules:
- Schneider Modicon TM3
- connection type 1:
- System
- connection type 2:
- System
- connector 2:
- TM3 DI8A
- country of origin sales organisation germany:
- FR
- current per wire max:
- 0.75 A
- fire load:
- 0.000 MJ
- inputs outputs:
- 8 digital inputs: for higher voltages
- note:
- If less than 3 channels used at the same time, the maximum current per wire 2 A and up to 5 A (amb. T 30 C) or 3.5 A (amb. T 50 C) on the power supply pins N/L. If more than 3 channels used at the same time, the maximum current per wire 0.75 A an
- operating voltage:
- ¤ AC/DC 250 V
- packaging type:
- Bag
- pluggable connectors:
- WAGO 231 Series
- pole number 1:
- 12
- pole number 2:
- 11
- surrounding air temperature operation:
- -20 50 C
- weight:
- 225.000 g
- wire cross section:
- 0.34 mm
