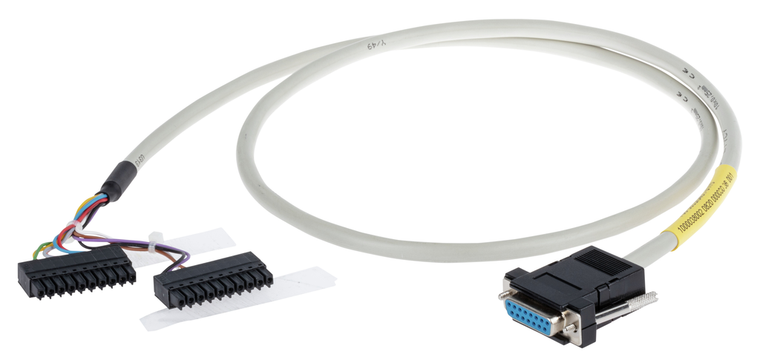

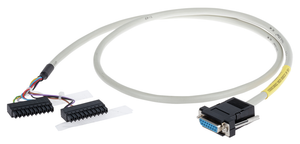

S-Cable MODICON TM3 A4E
- cable length:
- 2 m
- cable type:
- LiYY
- color code:
- Per DIN VDE 47100
- compatible plc i o card types:
- TM3 AI4(G) || TM3 TI4(G)
- compatible plc modules:
- Schneider Modicon TM3
- connection type 1:
- System
- connection type 2:
- System
- connector 2:
- TM3 AI2H(G)
- current per wire max:
- 0.0416666666666667
- fire load:
- 0.000 MJ
- inputs outputs:
- 4 analog inputs
- note:
- When using more than 10 wires, the maximum current per wire must be reduced to 0.7 A.
- operating voltage:
- ¤ AC/DC 35 V
- packaging type:
- Bag
- pluggable connectors:
- D-sub female connector
- pole number 1:
- 15
- pole number 2:
- 20
- surrounding air temperature operation:
- -20 50 C
- weight:
- 330.000 g
- wire cross section:
- 0.14 mm
