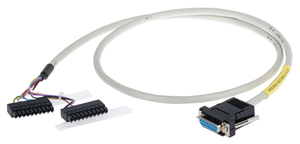

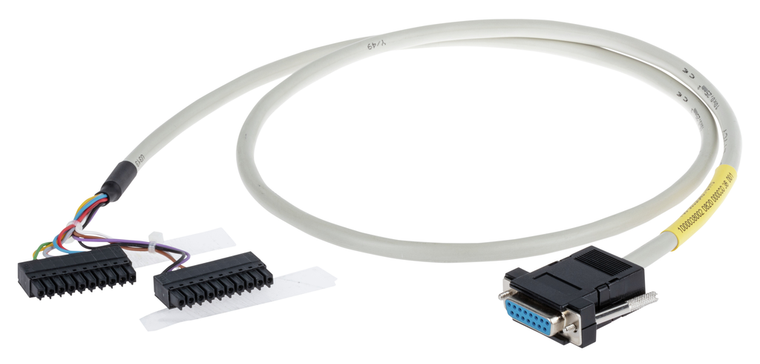

System cable; for Schneider Modicon TM3; 6 analog inputs or outputs; Length: 3 m; Conductor cross-section: 0.25 mm²
- cable length:
- 3 m
- cable type:
- LiYCY
- color code:
- Per DIN VDE 47100
- compatible plc i o card types:
- TM3 AM6(G)
- compatible plc modules:
- Schneider Modicon TM3
- connection type 1:
- System
- connection type 2:
- System
- connector 2:
- TM3 AM6(G)
- current per wire max:
- 0.0833333333333333
- fire load:
- 0.000 MJ
- inputs outputs:
- 6 analog inputs or outputs
- note:
- When using more than 10 wires, the maximum current per wire must be reduced to 1 A.
- operating voltage:
- ¤ AC/DC 35 V
- packaging type:
- Bag
- pluggable connectors:
- D-sub female connector
- pole number 1:
- 25
- pole number 2:
- 20
- surrounding air temperature operation:
- -20 50 C
- weight:
- 410.000 g
- wire cross section:
- 0.25 mm
- QN-QUOTE-REQUEST:
- true
