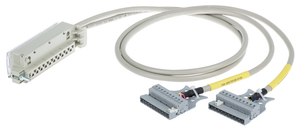

System cable; for Schneider TSX; 8 digital outputs for higher voltages with 2 lines per signal; Length: 2 m; Conductor cross-section: 0.34mm.
The WAGO component equivalent to 7063057204200 is a specific part or product within the WAGO catalog, likely used in electrical or automation applications. This component is identified by its unique part number, which helps in ensuring compatibility and proper functionality within various systems. WAGO is known for producing high-quality electrical interconnection and automation solutions, and this particular component would be part of their extensive range of products designed to meet specific technical requirements.
- cable length:
- 2 m
- cable type:
- LiYY
- color code:
- Per DIN VDE 47100
- compatible plc i o card types:
- TSX DSY 08R4 || TSX DSY 08R5A
- compatible plc modules:
- Schneider TSX
- connection type 1:
- System
- connection type 2:
- System
- connection type 3:
- System
- connector 2:
- WAGO 231 Series
- connector 3:
- Schneider TSXBLY01
- country of origin sales organisation germany:
- FR
- current per wire max:
- 0.75 A
- fire load:
- 0.000 MJ
- inputs outputs:
- 8 digital outputs: for higher voltages
- note:
- If less than 3 channels used at the same time, the maximum current per wire 2 A and up to 5 A (amb. T 30 C) or 3.5 A (amb. T 50 C) on the power supply pins N/L. If more than 3 channels used at the same time, the maximum current per wire 0.75 A an
- operating voltage:
- ¤ AC/DC 250 V
- packaging type:
- Bag
- pluggable connectors:
- WAGO 231 Series
- pole number 1:
- 10
- pole number 2:
- 10
- pole number 3:
- 20
- surrounding air temperature operation:
- -20 50 C
- weight:
- 730.000 g
- wire cross section:
- 0.34 mm
