Wago

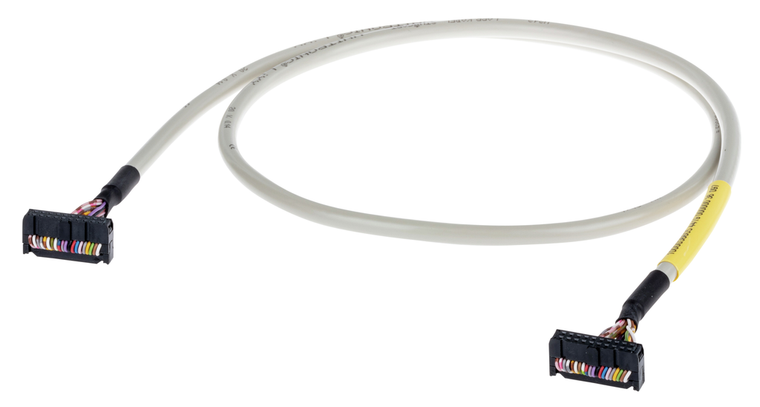

WAGO 706-3057/300-300

SKU:

706-3057/300-300

UPC:

MPN:

706-3057/300-300

Condition:

New

cable length:

3 m

cable type:

LiYY

color code:

Per DIN VDE 47100

compatible plc i o card types:

TSX DEY 16FK || TSX DEY 32D2K || TSX DEY 64D2K || TSX DEZ 12D2K || TSX DMY 28FK || TSX DMY 28RFK || TSX DMZ 28DTK || TSX DMZ 64DTK || TSX DSY 32T2K || TSX DSY 64T2K

compatible plc modules:

Schneider TSX

connection type 1:

System

connection type 2:

System

connector 2:

Pluggable connector per DIN 41651: Female connector

country of origin sales organisation germany:

FR

current per wire max:

0.0416666666666667

fire load:

0.000 MJ

inputs outputs:

16 digital inputs or outputs

note:

When using more than 10 wires, the maximum current per wire must be reduced to 0.7 A.

operating voltage:

¤ AC/DC 35 V

pluggable connectors:

Pluggable connector per DIN 41651: Female connector

pole no:

20

pole number 1:

20

pole number 2:

20

surrounding air temperature operation:

-20 50 C

weight:

231.350 g

wire cross section:

0.14 mm
