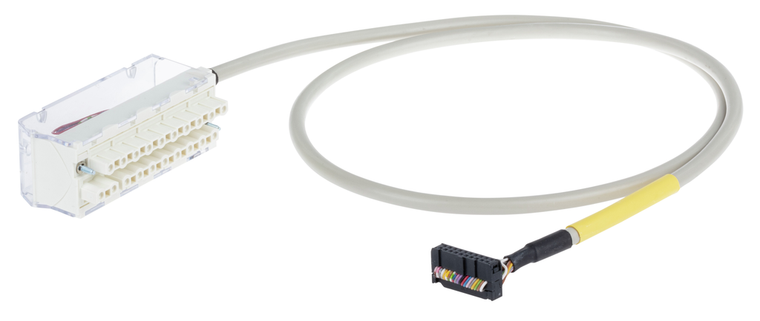

S-Cable MODICON QUANTUM 2xT16ES.
The WAGO component equivalent to 7063140301300 is a specific part used in electrical and automation systems. It is designed to provide reliable and efficient connectivity solutions, ensuring secure and stable connections in various applications. This component is known for its high quality, durability, and ease of use, making it a preferred choice for professionals in the industry. It is compatible with a range of systems and can be integrated seamlessly into existing setups, offering flexibility and performance in demanding environments.
- cable length:
- 3 m
- cable type:
- LiYY
- color code:
- Per DIN VDE 47100
- compatible plc i o card types:
- 140 DDI 353 00 || 140 DSI 353 00 || 140 DDO 353 00 || 140 DDO 353 01 || 140 DVO 853 00
- compatible plc modules:
- Schneider Modicon Quantum
- connection type 1:
- System
- connection type 2:
- System
- connection type 3:
- System
- connector 2:
- Pluggable connector per DIN 41651: Female connector
- connector 3:
- Schneider 140XTS00200
- country of origin sales organisation germany:
- FR
- current per wire max:
- 0.0416666666666667
- fire load:
- 0.000 MJ
- inputs outputs:
- 2 x 16 digital inputs or outputs
- note:
- When using more than 10 wires, the maximum current per wire must be reduced to 0.7 A.
- operating voltage:
- ¤ AC/DC 35 V
- pluggable connectors:
- Pluggable connector per DIN 41651: Female connector
- pole number 1:
- 20
- pole number 2:
- 20
- pole number 3:
- 40
- surrounding air temperature operation:
- -20 50 C
- weight:
- 683.000 g
- wire cross section:
- 0.14 mm
