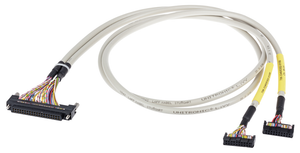

System cable; for Schneider Modicon M340; 2x 8 digital inputs or outputs; Length: 2 m; Conductor cross-section: 0.14 mm².
The WAGO component equivalent to 7063340303200 is a specific part or product within the WAGO range, likely used in electrical or automation applications. This component is identified by its unique code, which helps in ensuring compatibility and proper functionality within systems that require precise and reliable components.
- cable length:
- 2 m
- cable type:
- LiYY
- color code:
- Per DIN VDE 47100
- compatible plc i o card types:
- BMX DDM 16022
- compatible plc modules:
- Schneider Modicon M340
- connection type 1:
- System
- connection type 2:
- System
- connection type 3:
- System
- connector 2:
- Pluggable connector per DIN 41651: Female connector
- connector 3:
- Schneider BMXFTB2020
- country of origin sales organisation germany:
- FR
- current per wire max:
- 0.0416666666666667
- fire load:
- 0.000 MJ
- inputs outputs:
- 2 x 8 analog inputs or outputs
- note:
- When using more than 10 wires, the maximum current per wire must be reduced to 0.7 A.
- operating voltage:
- ¤ AC/DC 35 V
- packaging type:
- Bag
- pluggable connectors:
- Pluggable connector per DIN 41651: Female connector
- pole number 1:
- 10
- pole number 2:
- 10
- pole number 3:
- 20
- surrounding air temperature operation:
- -20 50 C
- weight:
- 262.000 g
- wire cross section:
- 0.14 mm
