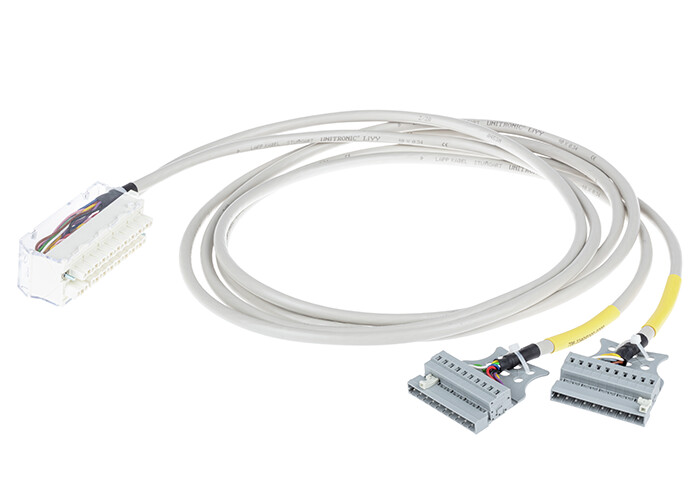

WAGO 706-3340/304-100 system cable for Schneider Modicon M340, 8 digital inputs and 8 digital outputs, 1m length, 0.14mm² conductor cross-section
Wago
$465.30
System cable; for Schneider Modicon M340; 8 digital inputs and 8 digital outputs for higher voltages; Length: 1 m; Conductor cross-section: 0.14mm.
The WAGO component equivalent to 7063340304100 is a specific part used in electrical and automation systems. It is designed to provide reliable and efficient connectivity solutions, ensuring secure and stable connections in various applications. This component is known for its high quality, durability, and compatibility with other WAGO products, making it a preferred choice for professionals in the industry.
- cable length:
- 1 m
- cable type:
- LiYY
- color code:
- Per DIN VDE 47100
- compatible plc i o card types:
- BMX DDM 16025
- compatible plc modules:
- Schneider Modicon M340
- connection type 1:
- System
- connection type 2:
- System
- connection type 3:
- System
- connector 2:
- WAGO 231 Series
- connector 3:
- Schneider BMXFTB2020
- country of origin sales organisation germany:
- FR
- current per wire max:
- 0.75 A
- fire load:
- 0.000 MJ
- inputs outputs:
- 8 digital inputs and 8 digital outputs
- note:
- If less than 3 channels used at the same time, the maximum current per wire 2 A and up to 5 A (amb. T 30 C) or 3.5 A (amb. T 50 C) on the power supply pins N/L. If more than 3 channels used at the same time, the maximum current per wire 0.75 A an
- operating voltage:
- ¤ AC/DC 35 V
- packaging type:
- Bag
- pluggable connectors:
- Pluggable connector per DIN 41651: Female connector
- pole number 1:
- 10
- pole number 2:
- 10
- pole number 3:
- 20
- surrounding air temperature operation:
- -20 50 C
- weight:
- 243.000 g
- wire cross section:
- 0.14 mm
