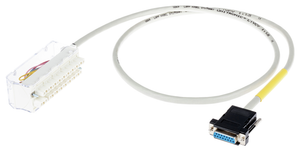

S-Cable MODICON M340 A4EU.
The WAGO component equivalent to 7063340401300 is a specific part used in electrical and automation systems. It is designed to provide reliable and efficient connectivity solutions, ensuring secure and stable connections in various applications. This component is known for its high quality, durability, and ease of use, making it a preferred choice for professionals in the industry. It is compatible with a range of systems and can be integrated seamlessly to enhance performance and reliability in electrical installations.
- cable length:
- 3 m
- cable type:
- LiYCY
- color code:
- Per DIN VDE 47100
- compatible plc i o card types:
- BMX AMI 0410 || BMX AMO 0410
- compatible plc modules:
- Schneider Modicon M340
- connection type 1:
- System
- connection type 2:
- System
- connector 2:
- Schneider BMXFTB2020
- country of origin sales organisation germany:
- FR
- current per wire max:
- 0.0833333333333333
- fire load:
- 0.000 MJ
- inputs outputs:
- 2 x 8 analog inputs: voltage
- note:
- When using more than 10 wires, the maximum current per wire must be reduced to 1 A.
- operating voltage:
- ¤ AC/DC 35 V
- pluggable connectors:
- D-sub female connector
- pole number 1:
- 15
- pole number 2:
- 20
- surrounding air temperature operation:
- -20 50 C
- weight:
- 260.000 g
- wire cross section:
- 0.25 mm
