Wago 706-4756/407-200 S-Cable, ROCKWELL CONTROL LOGIX 2xA8EU

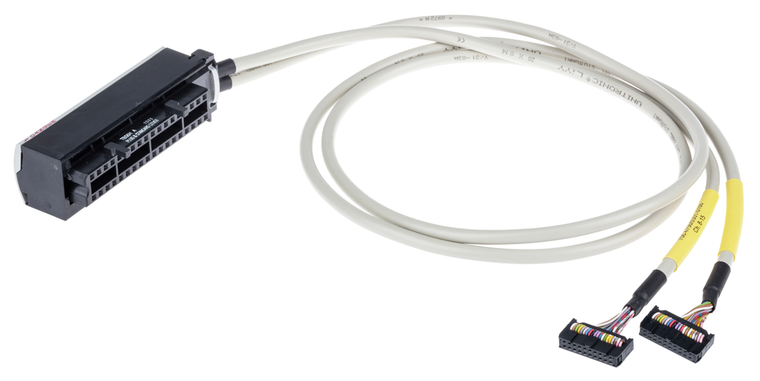

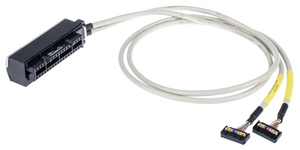

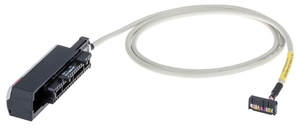

System cable; for Rockwell Control Logix; 2 x 8 analog inputs (voltage); Length: 2 m; Conductor cross-section: 0.25 mm²
- cable length:
- 2 m
- cable type:
- LiYCY
- color code:
- Per DIN VDE 47100
- compatible plc i o card types:
- 1756 - IF16
- compatible plc modules:
- Rockwell Control Logix
- connection type 1:
- System
- connection type 2:
- System
- connection type 3:
- System
- connector 2:
- Sub-Min-D: female connector
- connector 3:
- Allen Bradley 1756-TBS6H/A
- current per wire max:
- 0.0833333333333333
- fire load:
- 0.000 MJ
- inputs outputs:
- 2 x 8 analog inputs: voltage
- note:
- When using more than 10 wires, the maximum current per wire must be reduced to 1 A.
- operating voltage:
- ëñ AC/DC 35 V
- packaging type:
- Box
- pluggable connectors:
- D-sub female connector
- pole number 1:
- 25
- pole number 2:
- 25
- pole number 3:
- 36
- surrounding air temperature operation:
- -20 ê 50 C
- weight:
- 1.111 g
- wire cross section:
- 0.25 mm
