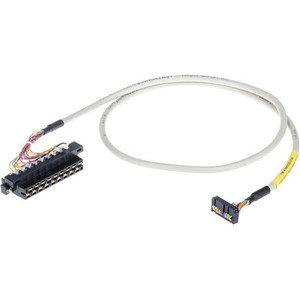

WAGO 706-4769/203-200 system cable for Rockwell Compact Logix, 2m length, 20 poles
Wago
$410.10
System cable; for Rockwell Compact Logix; 16 digital outputs; Length: 2 m; Conductor cross-section: 0.25 mm².
The WAGO component equivalent to 7064769203200 is a specific part or product within the WAGO catalog, likely identified by a unique product number for easy reference and procurement. This component is designed to meet particular technical specifications and requirements, ensuring compatibility and functionality within various electrical or automation systems. WAGO is known for producing high-quality electrical interconnection and automation solutions, and this component would be part of their extensive range of products aimed at providing reliable and efficient performance in industrial applications.
- cable length:
- 2 m
- cable type:
- LiYY
- color code:
- Per DIN VDE 47100
- compatible plc i o card types:
- 1769 - OB16 || 1769 - OB16P
- compatible plc modules:
- Rockwell Compact Logix
- connection type 1:
- System
- connection type 2:
- System
- connector 2:
- Rockwell-RTBN18
- country of origin sales organisation germany:
- FR
- current per wire max:
- 0.0416666666666667
- fire load:
- 0.000 MJ
- inputs outputs:
- 16 digital outputs
- note:
- When using more than 10 wires, the maximum current per wire must be reduced to 0.7 A.
- operating voltage:
- ¤ AC/DC 35 V
- pluggable connectors:
- Pluggable connector per DIN 41651: Female connector
- pole number 1:
- 20
- pole number 2:
- 18
- surrounding air temperature operation:
- -20 50 C
- weight:
- 239.000 g
- wire cross section:
- 0.14 mm
