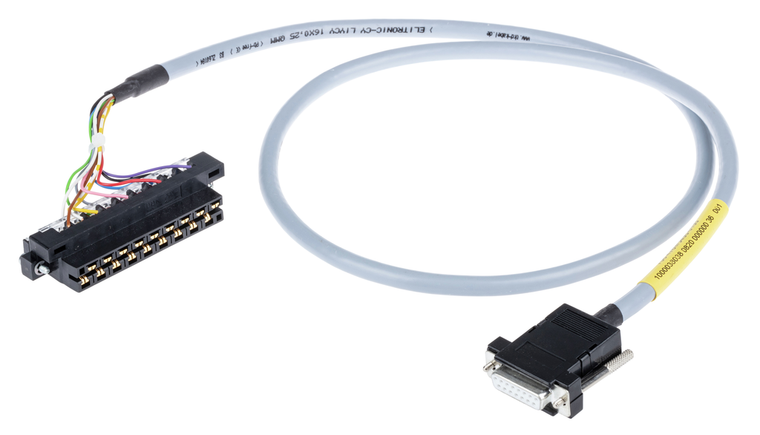

WAGO 706-4769/405-200 S-Cable for Rockwell Compact Logix 2xA4EI
Wago
$731.40
S-Cable ROCKWELL COMPACT LOGIX 2xA4EI.
The WAGO component equivalent to 7064769405200 is a specific part or product within the WAGO catalog, likely used in electrical or automation applications. This component is identified by a unique code, which helps in accurately matching or replacing parts within systems that require precise specifications.
- cable length:
- 2 m
- cable type:
- LiYCY
- color code:
- Per DIN VDE 47100
- compatible plc i o card types:
- 1769 - IF8
- compatible plc modules:
- Rockwell Compact Logix
- connection type 1:
- System
- connection type 2:
- System
- connection type 3:
- System
- connection type 4:
- System
- connector 2:
- Sub-Min-D: female connector
- connector 3:
- Rockwell-RTBN18
- connector 4:
- Rockwell-RTBN18
- country of origin sales organisation germany:
- FR
- current per wire max:
- 0.0833333333333333
- fire load:
- 0.000 MJ
- inputs outputs:
- 2 x 4 analog inputs (current)
- note:
- When using more than 10 wires, the maximum current per wire must be reduced to 1 A.
- operating voltage:
- ¤ AC/DC 35 V
- packaging type:
- Box
- pluggable connectors:
- D-sub female connector
- pole number 1:
- 15
- pole number 2:
- 15
- pole number 3:
- 18
- pole number 4:
- 18
- surrounding air temperature operation:
- -20 50 C
- weight:
- 1.111 g
- wire cross section:
- 0.25 mm
