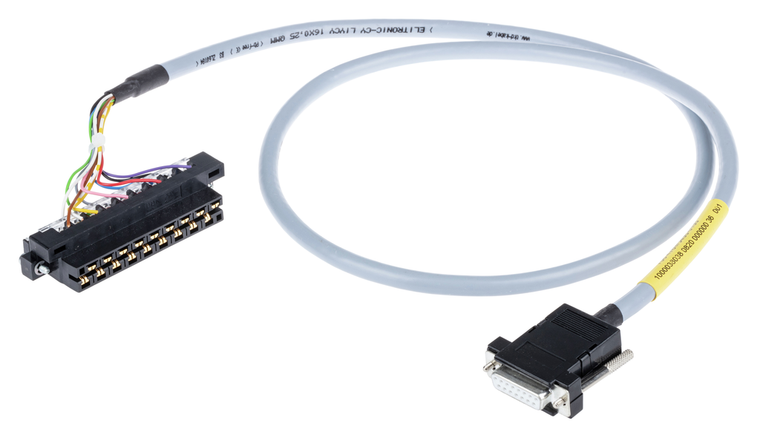

System cable; for Rockwell Compact Logix; 6 analog inputs or outputs (voltage); Length: 2 m; Conductor cross-section: 0.25 mm².
The WAGO component equivalent to 7064769601200 is a specific part or product within the WAGO catalog, likely used in electrical or automation applications. This component is identified by its unique part number, which helps in ensuring compatibility and proper functionality within a given system. WAGO is known for producing high-quality electrical interconnect and automation solutions, and this particular component would adhere to their standards of reliability and performance.
- cable length:
- 2 m
- cable type:
- LiYCY
- color code:
- Per DIN VDE 47100
- compatible plc i o card types:
- 1769 - IF4XOF2 (F)
- compatible plc modules:
- Rockwell Compact Logix
- connection type 1:
- System
- connection type 2:
- System
- connector 2:
- Rockwell-RTBN18
- country of origin sales organisation germany:
- FR
- current per wire max:
- 0.0833333333333333
- fire load:
- 0.000 MJ
- inputs outputs:
- 6 analog inputs or outputs: voltage
- note:
- When using more than 10 wires, the maximum current per wire must be reduced to 1 A.
- operating voltage:
- ¤ AC/DC 35 V
- packaging type:
- Bag
- pluggable connectors:
- D-sub female connector
- pole number 1:
- 25
- pole number 2:
- 18
- surrounding air temperature operation:
- -20 50 C
- weight:
- 520.000 g
- wire cross section:
- 0.25 mm
