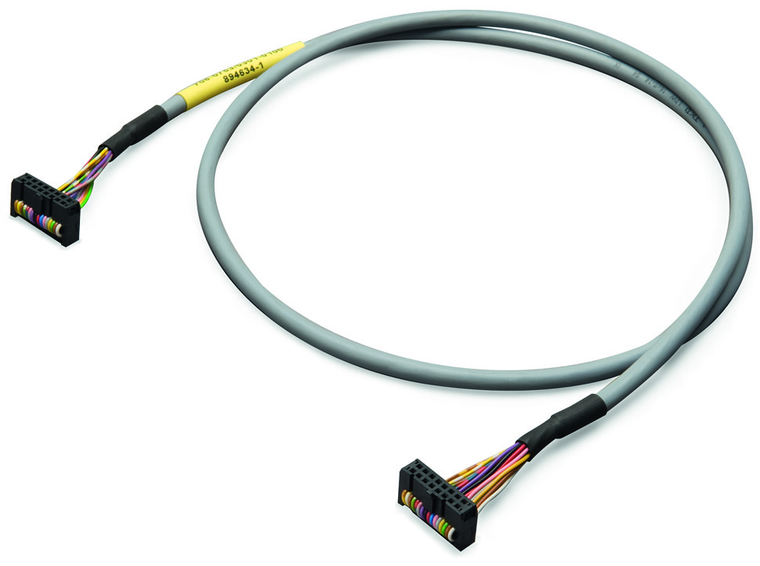

WAGO 706-753/301-100 16-Pole Ribbon Cable, 1m
Wago
$85.01
Connection cable; 16-pole; Pluggable connector per DIN 41651; 16-pole; Pluggable connector per DIN 41651; Length: 1 m (1 MOhm); Conductor cross-section: 0.14 mm.
The WAGO 706 series connection cable pair features a 1-meter length and includes two 16-pin DIN 41651 male connectors. It is rated for a current of 1A per conductor and has an IP20 protection rating. This product is equivalent to the model number 706753301100.
- cable length:
- 1 m
- cable type:
- LiYY
- color code:
- Per DIN VDE 47100
- connection type 1:
- System
- connection type 2:
- System
- connector 2:
- Pluggable connector per DIN 41651: Female connector
- country of origin sales organisation germany:
- FR
- current per wire max:
- 0.0416666666666667
- fire load:
- 0.000 MJ
- note:
- When using more than 10 wires, the maximum current per wire must be reduced to 0.7 A.
- operating voltage:
- ¤ DC 35 V
- packaging type:
- Box
- pluggable connectors:
- Pluggable connector per DIN 41651: Female connector
- pole no:
- 16
- pole number 1:
- 16
- pole number 2:
- 16
- surrounding air temperature operation:
- -25 70 C
- weight:
- 9.999 g
- wire cross section:
- 0.14 mm
