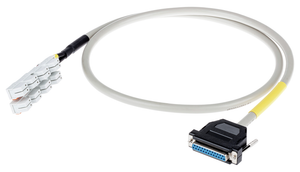

WAGO 706-7753/300-100 system cable for WAGO-I/O-SYSTEM 753 series, 8 digital inputs/outputs, 1m length, 0.14mm² conductor cross-section
Wago
$81.35
System cable; for WAGO-I/O-SYSTEM, 753 Series; 8 digital inputs or outputs; Length: 1 m (1 MOhm); Conductor cross-section: 0.14 mm.
The WAGO component equivalent to 7067753300100 is a specific part used in electrical and automation systems. It is designed to provide reliable and efficient connectivity solutions, ensuring secure and stable connections in various applications. This component is known for its high quality, durability, and compatibility with other WAGO products, making it a preferred choice for professionals in the industry.
- cable length:
- 1 m
- cable type:
- LiYY
- color code:
- Per DIN VDE 47100
- compatible plc i o card types:
- 753-430 (x1) || 753-431 (x1) || 753-530 (x1)
- compatible plc modules:
- WAGO I/O System 753
- connection type 1:
- System
- connection type 2:
- System
- connector 2:
- Pluggable connector per DIN 41651: Female connector
- country of origin sales organisation germany:
- FR
- current per wire max:
- 0.0416666666666667
- fire load:
- 0.000 MJ
- inputs outputs:
- 8 digital inputs or outputs
- note:
- Observe maximum operating temperature of the WAGO I/O modules used.
- operating voltage:
- ¤ AC/DC 35 V
- pluggable connectors:
- Pluggable connector (753 Series)
- pole number 1:
- 8
- pole number 2:
- 10
- surrounding air temperature operation:
- -20 50 C
- weight:
- 58.000 g
- wire cross section:
- 0.14 mm
