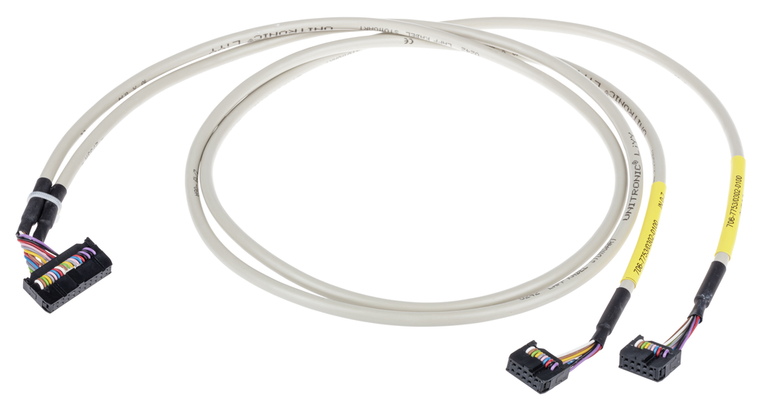

WAGO 706-7753/302-100 System Cable for WAGO-I/O-SYSTEM 750 Series, 1m Length, 8 Digital Inputs and 8 Digital Outputs, 0.14mm² Conductor Cross-Section
Wago
$88.66
System cable; for WAGO-I/O-SYSTEM, 750 Series; 8 digital inputs and 8 digital outputs; Length: 1 m; Conductor cross-section: 0.14 mm².
The WAGO 706 series system cable features 8 digital inputs and 8 digital outputs, is 1 meter in length, and includes a DIN 41651 20-pin female connector along with two DIN 41651 10-pin female connectors. It supports a rated current of 1A per conductor and has an IP20 protection rating, equivalent to model number 7067753302100.
- cable length:
- 1 m
- cable type:
- LiYY
- color code:
- Per DIN VDE 47100
- compatible plc i o card types:
- 750-1502
- compatible plc modules:
- WAGO I/O System 753
- connection type 1:
- System
- connection type 2:
- System
- connection type 3:
- System
- connector 2:
- Pluggable connector per DIN 41651: Female connector
- connector 3:
- DIN 41651 connector: female connector
- country of origin sales organisation germany:
- FR
- current per wire max:
- 0.0416666666666667
- fire load:
- 0.000 MJ
- inputs outputs:
- 8 digital inputs and 8 digital outputs
- note:
- When using more than 10 wires, the maximum current per wire must be reduced to 0.7 A.
- operating voltage:
- ¤ AC/DC 35 V
- pluggable connectors:
- Pluggable connector per DIN 41651: Female connector
- pole number 1:
- 20
- pole number 2:
- 10
- pole number 3:
- 10
- surrounding air temperature operation:
- -20 50 C
- weight:
- 95.000 g
- wire cross section:
- 0.14 mm
