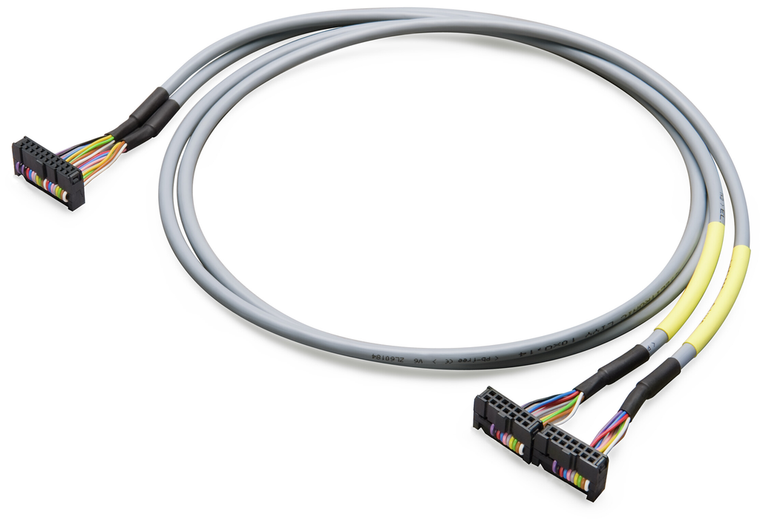

WAGO 706-7753/304-100 system cable for WAGO-I/O-SYSTEM 750 Series, 2 x 8 analog inputs or outputs, 1 m length, 0.14 mm² conductor cross-section
Wago
$99.01
System cable; for WAGO-I/O-SYSTEM, 750 Series; 2 x 8 analog inputs or outputs; Length: 1 m (1 MOhm); Conductor cross-section: 0.14 mm.
The WAGO 706 series system cable features a 1-meter length and is capable of connecting 2 x 8 analog inputs or outputs. It includes two DIN 41651 14-pin female connectors and one additional DIN 41651 14-pin female connector. The cable is rated for a current of 1A per conductor and has an IP20 protection rating. It is equivalent to the model number 7067753304100.
- cable length:
- 1 m
- cable type:
- LiYY
- color code:
- Per DIN VDE 47100
- compatible plc modules:
- WAGO I/O System 750
- connection type 1:
- System
- connection type 2:
- System
- connection type 3:
- System
- connector 2:
- Pluggable connector per DIN 41651: Female connector
- connector 3:
- DIN 41651 connector: female connector
- country of origin sales organisation germany:
- FR
- current per wire max:
- 0.0416666666666667
- fire load:
- 0.000 MJ
- inputs outputs:
- 2 x 8 analog inputs or outputs
- note:
- When using more than 10 wires, the maximum current per wire must be reduced to 0.7 A.
- operating voltage:
- ¤ AC/DC 35 V
- packaging type:
- Box
- pluggable connectors:
- Pluggable connector per DIN 41651: Female connector
- pole number 1:
- 20
- pole number 2:
- 14
- pole number 3:
- 14
- surrounding air temperature operation:
- -20 50 C
- weight:
- 97.000 g
- wire cross section:
- 0.14 mm
