System cable; for WAGO-I/O-SYSTEM, 750 Series; 2x 8 digital inputs or outputs; Length: 1 m (1 MOhm); Conductor cross-section: 0.14 mm.

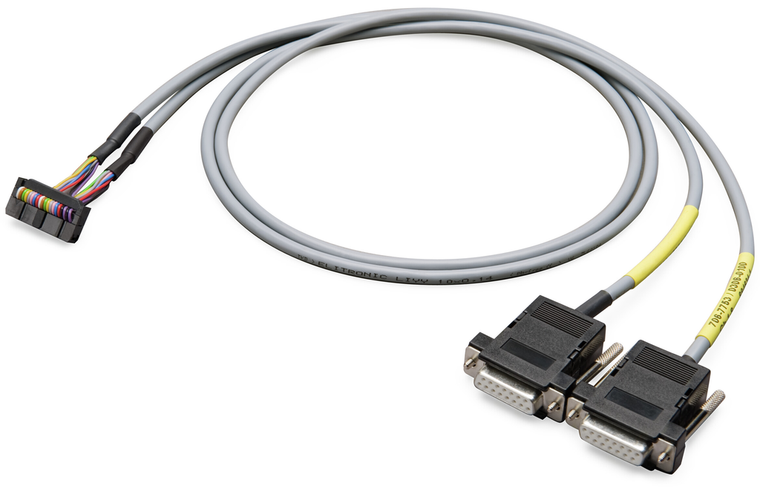

The WAGO 706 series system cable is a 1-meter long cable designed for connecting 2 x 8 digital inputs or outputs. It features a DIN 41651 20-pin female connector and two 15-pin D-sub female connectors, with a rated current of 1A per conductor. The cable has an IP20 rating and is equivalent to the model number 7067753306100.
- cable length:
- 1 m
- cable type:
- LiYY
- color code:
- Per DIN VDE 47100
- compatible plc modules:
- WAGO I/O System 750
- connection type 1:
- System
- connection type 2:
- System
- connection type 3:
- System
- connector 2:
- D-sub female connector
- connector 3:
- D-sub female connector
- country of origin sales organisation germany:
- FR
- current per wire max:
- 0.0416666666666667
- fire load:
- 0.000 MJ
- inputs outputs:
- 2 x 8 digital inputs or outputs
- note:
- When using more than 10 wires, the maximum current per wire must be reduced to 0.7 A.
- operating voltage:
- ¤ AC/DC 35 V
- packaging type:
- Box
- pluggable connectors:
- Pluggable connector per DIN 41651: Female connector
- pole number 1:
- 20
- pole number 2:
- 15
- pole number 3:
- 15
- surrounding air temperature operation:
- -20 50 C
- weight:
- 133.000 g
- wire cross section:
- 0.14 mm
