System cable; for WAGO-I/O-SYSTEM, 750 Series; 2x 8 digital inputs or outputs; Length: 2 m; Conductor cross-section: 0.14 mm.

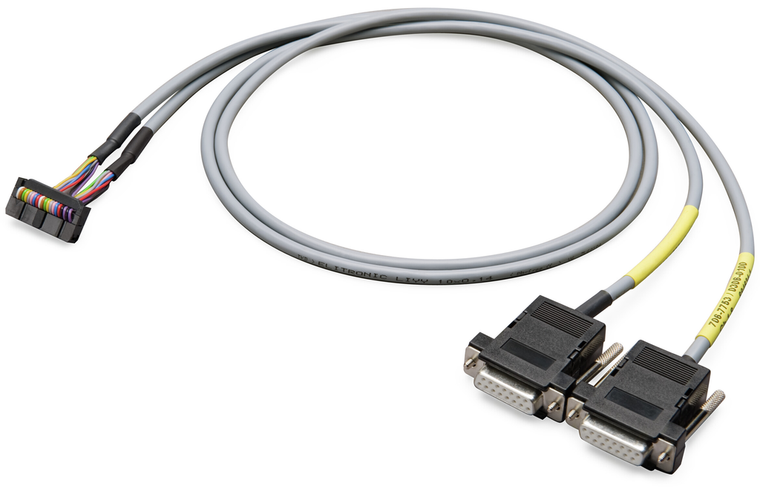

The WAGO 706 series system cable features a 2-meter length and supports 2 x 8 digital inputs or outputs. It includes a DIN 41651 20-pin female connector and two 15-pin D-sub female connectors. The cable is rated for a current of 1A per conductor and has an IP20 protection rating. It is equivalent to the model number 7067753306200.
- cable length:
- 2 m
- cable type:
- LiYY
- color code:
- Per DIN VDE 47100
- compatible plc modules:
- WAGO I/O System 750
- connection type 1:
- System
- connection type 2:
- System
- connection type 3:
- System
- connector 2:
- D-sub female connector
- connector 3:
- D-sub female connector
- country of origin sales organisation germany:
- FR
- current per wire max:
- 0.0416666666666667
- fire load:
- 0.000 MJ
- inputs outputs:
- 2 x 8 digital inputs or outputs
- note:
- When using more than 10 wires, the maximum current per wire must be reduced to 0.7 A.
- operating voltage:
- ¤ AC/DC 35 V
- packaging type:
- Box
- pluggable connectors:
- Pluggable connector per DIN 41651: Female connector
- pole number 1:
- 20
- pole number 2:
- 15
- pole number 3:
- 15
- surrounding air temperature operation:
- -20 50 C
- weight:
- 9.999 g
- wire cross section:
- 0.14 mm
