WAGO 706-7753/602-300 S-Cable, WAGO 753 A4ES
Wago
$137.10

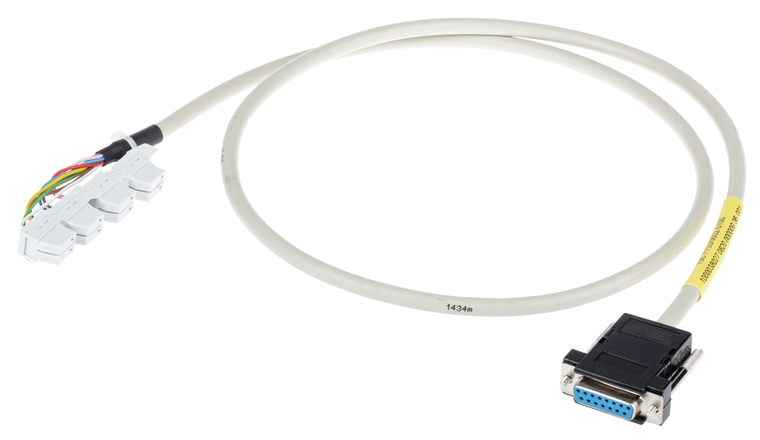

S-Cable, WAGO 753 A4ES.
The WAGO component equivalent to 7067753602300 is a specific part or product within the WAGO catalog, likely used in electrical or automation applications. This component is identified by its unique code, which helps in ensuring compatibility and proper functionality within systems that require precise and reliable connections or controls.
- cable length:
- 3 m
- cable type:
- LiYCY
- color code:
- Per DIN VDE 47100
- compatible plc i o card types:
- 753-453 (x1) || 753-455 (x1) || 753-457 (x1) || 753-459 (x1) || 753-553 (x1) || 753-555 (x1) || 753-557 (x1) || 753-559 (x1)
- compatible plc modules:
- WAGO I/O System 753
- connection type 1:
- System
- connection type 2:
- System
- connector 2:
- WAGO 753-110
- country of origin sales organisation germany:
- FR
- current per wire max:
- 0.0833333333333333
- fire load:
- 0.000 MJ
- inputs outputs:
- 4 analog inputs or outputs
- note:
- When using more than 10 wires, the maximum current per wire must be reduced to 1 A.
- operating voltage:
- «± AC/DC 35 V
- packaging type:
- Box
- pluggable connectors:
- D-sub female connector
- pole number 1:
- 15
- pole number 2:
- 8
- surrounding air temperature operation:
- -20 ª 50 C
- weight:
- 1.111 g
- wire cross section:
- 0.25 mm
