Wago

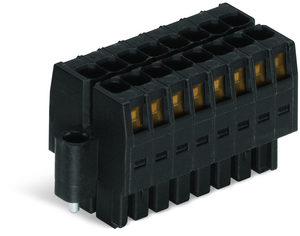

WAGO 713-1106/107-9037/036-000

SKU:

713-1106/107-9037/036-000

UPC:

MPN:

713-1106/107-9037/036-000

Condition:

New

actuation type:

Operating tool

approvals per:

UL 1059

clamping spring material:

Chrome nickel spring steel (CrNi)

color:

Black

conductor entry direction to mating direction:

0

connection technology:

CAGE CLAMP

connector connection type:

For conductor

contact material:

Copper alloy

contact plating:

Tin-plated

contact type pluggable connector:

Female connector/socket

country of origin sales organisation germany:

PL

depth:

16 mm / 0.63 inch

fine stranded conductor:

0.08 1.5 mm / 28 16 AWG

fine stranded conductor with insulated ferrule:

0.25 1 mm

fine stranded conductor with uninsulated ferrule:

0.25 1 mm

fire load:

0.101 MJ

flammability class per ul94:

V0

insulation material:

Glass fiber-reinforced polyamide (PA66 GF)

legend ratings:

(III / 2) Overvoltage category III / Pollution degree 2

limit temperature range:

-60 +100 C

locking of plug in connection:

Screw flange

material group:

II

mismating protection:

Yes

nominal voltage ii 2:

250 V

nominal voltage iii 3:

80 V

packaging type:

Box

pin spacing:

3.5 mm / 0.138 inch

pole no:

12

rated current:

0.416666666666667

rated current csa use group b:

0.416666666666667

rated current ul use group b:

0.416666666666667

rated current ul use group c:

0.416666666666667

rated surge voltage ii 2:

2.5 kV

rated surge voltage iii 2:

2.5 kV

rated surge voltage iii 3:

2.5 kV

rated voltage csa use group b:

300 V

rated voltage iii 2:

160 V

rated voltage ul use group b:

300 V

rated voltage ul use group c:

50 V

ratings per:

IEC/EN 60664-1

safety information 1:

The MCS MULTI CONNECTION SYSTEM includes connectors without breaking capacity in accordance with DIN EN 61984. When used as intended, these connectors must not be connected/disconnected when live or under load. The circuit design should ensure

solid conductor:

0.08 1.5 mm / 28 16 AWG

strip length:

6 7 mm / 0.24 0.28 inch

weight:

7.570 g
