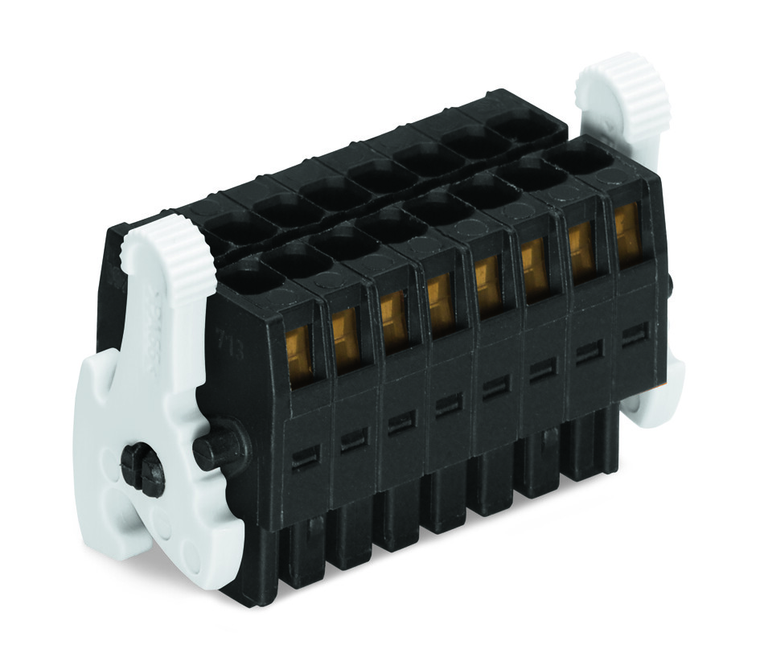

WAGO 713-1108/037-047/033-000 16-Pole Female Connector, 1.5 mm², 3.5 mm Pitch, Black
Wago
$20.21
1-conductor female plug100% protected against mismating, black.
The WAGO component equivalent to 7131108037047033000 is a specific part or model within WAGO's product lineup, likely used in electrical or automation applications. This component is identified by a unique part number, which helps in ensuring compatibility and proper functionality within a given system. The exact specifications, features, and applications of this component would be detailed in WAGO's product documentation or catalog, providing necessary information for engineers and technicians to integrate it into their projects.
- actuation type:
- Operating tool
- approvals per:
- UL 1059
- clamping spring material:
- Chrome nickel spring steel (CrNi)
- color:
- Black
- conductor entry direction to mating direction:
- 0
- connection technology:
- CAGE CLAMP
- connector connection type:
- For conductor
- contact material:
- Copper alloy
- contact plating:
- Tin-plated
- contact type pluggable connector:
- Female connector/socket
- country of origin sales organisation germany:
- PL
- depth:
- 16 mm / 0.63 inch
- fine stranded conductor:
- 0.08 1.5 mm / 28 16 AWG
- fine stranded conductor with insulated ferrule:
- 0.25 1 mm
- fine stranded conductor with uninsulated ferrule:
- 0.25 1 mm
- fire load:
- 0.150 MJ
- flammability class per ul94:
- V0
- height:
- 43.7 mm / 1.72 inch
- insulation material:
- Glass fiber-reinforced polyamide (PA66 GF)
- legend ratings:
- (III / 2) Overvoltage category III / Pollution degree 2
- limit temperature range:
- -60 +100 C
- locking of plug in connection:
- Locking lever
- material group:
- II
- mismating protection:
- Yes
- nominal voltage ii 2:
- 250 V
- nominal voltage iii 3:
- 80 V
- packaging type:
- Box
- pin spacing:
- 3.5 mm / 0.138 inch
- pole no:
- 16
- rated current:
- 0.416666666666667
- rated current csa use group b:
- 0.416666666666667
- rated current ul use group b:
- 0.416666666666667
- rated current ul use group c:
- 0.416666666666667
- rated surge voltage ii 2:
- 2.5 kV
- rated surge voltage iii 2:
- 2.5 kV
- rated surge voltage iii 3:
- 2.5 kV
- rated voltage csa use group b:
- 300 V
- rated voltage iii 2:
- 160 V
- rated voltage ul use group b:
- 300 V
- rated voltage ul use group c:
- 50 V
- ratings per:
- IEC/EN 60664-1
- safety information 1:
- The MCS MULTI CONNECTION SYSTEM includes connectors without breaking capacity in accordance with DIN EN 61984. When used as intended, these connectors must not be connected/disconnected when live or under load. The circuit design should ensure
- solid conductor:
- 0.08 1.5 mm / 28 16 AWG
- strain relief:
- Strain relief plate
- strip length:
- 6 7 mm / 0.24 0.28 inch
- weight:
- 10.020 g
- width:
- 36.5 mm / 1.437 inch
