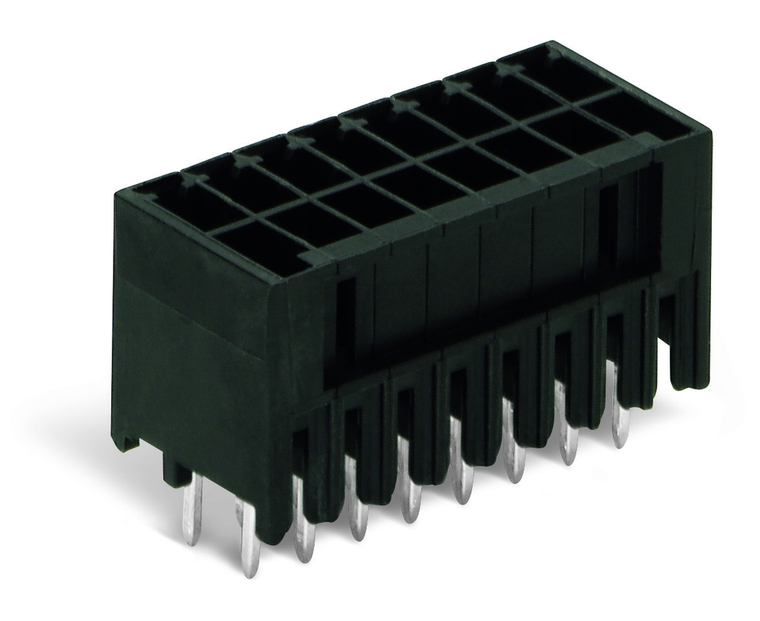

WAGO 713-1404/105-000 THR male header, 2-row, 8-pole, 3.5 mm pitch, straight, black
Wago
$3.29
THR male header, 2-row; 0.8 x 0.8 mm solder pin; straight; 100% protected against mismating; Pin spacing 3.5 mm; 8-pole; black.
The WAGO component equivalent to 7131404105000 is a specific type of electrical connector or terminal block used for secure and reliable electrical connections. It is designed to meet industry standards and is commonly used in various electrical and electronic applications to ensure efficient and safe connectivity. This component is known for its durability, ease of use, and compatibility with a wide range of wiring systems, making it a preferred choice for professionals in the field.
- approvals per:
- UL 1059
- color:
- Black
- connector connection type:
- For PCB
- contact material:
- Electrolytic copper (ECu)
- contact plating:
- Tin-plated
- contact type pluggable connector:
- Male connector/plug
- country of origin sales organisation germany:
- PL
- depth:
- 13.3 mm / 0.524 inch
- fire load:
- 0.050 MJ
- flammability class per ul94:
- V0
- height:
- 15.9 mm / 0.626 inch
- height from the surface:
- 13.5 mm / 0.531 inch
- insulation material:
- Polyphthalamide (PPA GF)
- legend ratings:
- (III / 2) Overvoltage category III / Pollution degree 2
- limit temperature range:
- -60 +100 C
- locking of plug in connection:
- Without
- material group:
- I
- mating direction to the pcb:
- 90
- mismating protection:
- Yes
- nominal voltage ii 2:
- 250 V
- nominal voltage iii 3:
- 80 V
- number of solder pins per potential:
- 1
- packaging type:
- Box
- pcb contact:
- THR
- pin spacing:
- 3.5 mm / 0.138 inch
- plated through hole diameter thr:
- 1.3 (+0.1) mm
- pole no:
- 8
- rated current:
- 0.416666666666667
- rated current csa use group b:
- 0
- rated current ul use group b:
- 0.416666666666667
- rated current ul use group c:
- 0.416666666666667
- rated surge voltage ii 2:
- 2.5 kV
- rated surge voltage iii 2:
- 2.5 kV
- rated surge voltage iii 3:
- 2.5 kV
- rated voltage csa use group b:
- 150 V
- rated voltage iii 2:
- 160 V
- rated voltage ul use group b:
- 150 V
- rated voltage ul use group c:
- 50 V
- ratings per:
- IEC/EN 60664-1
- safety information 1:
- The MCS MULTI CONNECTION SYSTEM includes connectors without breaking capacity in accordance with DIN EN 61984. When used as intended, these connectors must not be connected/disconnected when live or under load. The circuit design should ensure
- solder pin arrangement:
- Over the entire male connector (in-line)
- solder pin dimensions:
- 0.8 x 0.8 mm
- solder pin length:
- 2.4 mm
- weight:
- 2.258 g
- width:
- 15.5 mm / 0.61 inch
