WAGO 713-1418/105-000

(No reviews yet) Write a Review

Write a Review

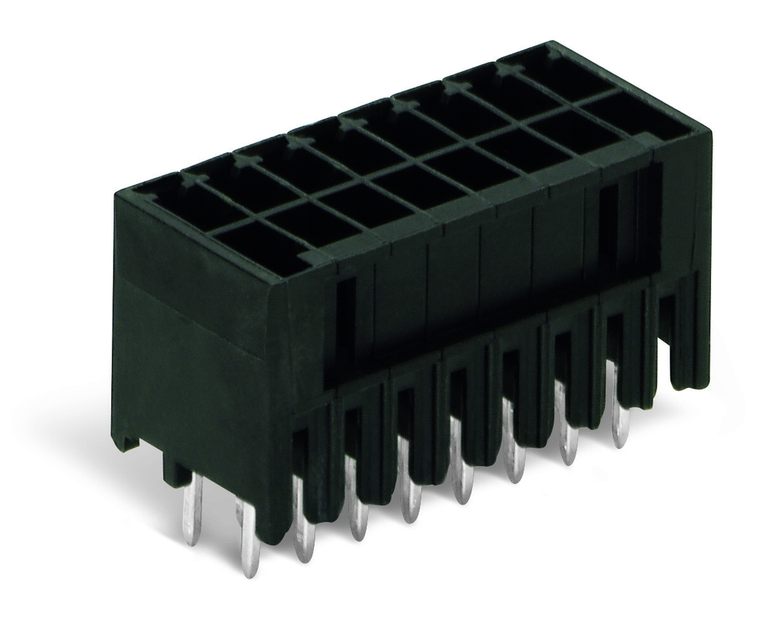

WAGO 713-1418/105-000

Rating Required Select Rating 1 star (worst) 2 stars 3 stars (average) 4 stars 5 stars (best)

Name

Email Required

Review Subject Required

Comments Required

SKU:

713-1418/105-000

UPC:

MPN:

713-1418/105-000

Condition:

New

approvals per:

CSA

color:

Black

connector connection type:

For PCB

contact material:

Electrolytic copper (ECu)

contact plating:

Tin-plated

contact type pluggable connector:

Male connector/plug

country of origin sales organisation germany:

PL

depth:

13.3 mm / 0.524 inch

fire load:

0.185 MJ

flammability class per ul94:

V0

height:

15.9 mm / 0.626 inch

height from the surface:

13.5 mm / 0.531 inch

insulation material:

Polyphthalamide (PPA GF)

legend ratings:

(III / 2) Overvoltage category III / Pollution degree 2

limit temperature range:

-60 +100 C

locking of plug in connection:

Without

material group:

I

mating direction to the pcb:

90

mismating protection:

Yes

nominal voltage ii 2:

250 V

nominal voltage iii 3:

80 V

number of solder pins per potential:

1

packaging type:

Box

pcb contact:

THR

pin spacing:

3.5 mm / 0.138 inch

plated through hole diameter thr:

1.3 (+0.1) mm

pole no:

36

rated current:

0.416666666666667

rated current csa use group b:

0

rated current ul use group b:

0.416666666666667

rated current ul use group c:

0.416666666666667

rated surge voltage ii 2:

2.5 kV

rated surge voltage iii 2:

2.5 kV

rated surge voltage iii 3:

2.5 kV

rated voltage csa use group b:

150 V

rated voltage iii 2:

160 V

rated voltage ul use group b:

150 V

rated voltage ul use group c:

50 V

ratings per:

IEC/EN 60664-1

safety information 1:

The MCS MULTI CONNECTION SYSTEM includes connectors without breaking capacity in accordance with DIN EN 61984. When used as intended, these connectors must not be connected/disconnected when live or under load. The circuit design should ensure

solder pin arrangement:

Over the entire male connector (in-line)

solder pin dimensions:

0.8 x 0.8 mm

solder pin length:

2.4 mm

weight:

8.906 g

width:

64.5 mm / 2.539 inch
