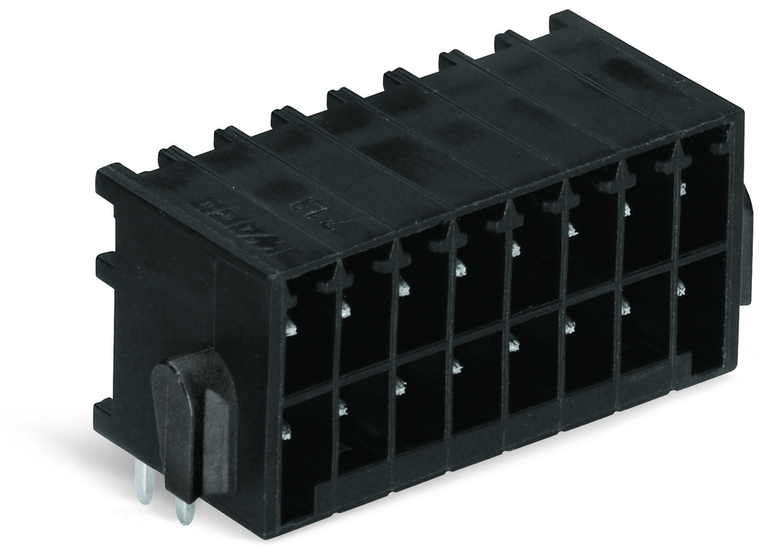

WAGO 713-1425/037-000 THT male header, 2-row, 10-pole, 0.8 x 0.8 mm solder pins, angled, 3.5 mm pin spacing, black
Wago
$3.90
THT male header, 2-row; 0.8 x 0.8 mm solder pin; angled; 100% protected against mismating; Levers; Pin spacing 3.5 mm; 10-pole; black.
The WAGO component equivalent to 7131425037000 is a specific type of electrical connector or terminal block used in various industrial and automation applications. This component is designed to ensure secure and reliable electrical connections, often featuring easy-to-use mechanisms such as push-in or lever-actuated connections. It is typically used in control cabinets, machinery, and other electrical installations where dependable connectivity is crucial. The equivalent part number indicates compatibility with existing systems and standards, ensuring seamless integration and functionality within a wide range of electrical setups.
- approvals per:
- CSA
- color:
- Black
- connector connection type:
- For PCB
- contact material:
- Electrolytic copper (ECu)
- contact plating:
- Tin-plated
- contact type pluggable connector:
- Male connector/plug
- country of origin sales organisation germany:
- PL
- depth:
- 13.5 mm / 0.531 inch
- drilled hole diameter with tolerance:
- 1.2 (+0.1) mm
- fire load:
- 0.061 MJ
- flammability class per ul94:
- V0
- height:
- 17.1 mm / 0.673 inch
- height from the surface:
- 13.3 mm / 0.524 inch
- insulation material:
- Polyphthalamide (PPA GF)
- legend ratings:
- (III / 2) Overvoltage category III / Pollution degree 2
- limit temperature range:
- -60 +100 C
- locking of plug in connection:
- Locking lever
- material group:
- I
- mating direction to the pcb:
- 0
- mismating protection:
- Yes
- nominal voltage ii 2:
- 250 V
- nominal voltage iii 3:
- 80 V
- number of solder pins per potential:
- 1
- packaging type:
- Box
- pcb contact:
- THT
- pin spacing:
- 3.5 mm / 0.138 inch
- pole no:
- 10
- rated current:
- 0.416666666666667
- rated current csa use group b:
- 0
- rated current ul use group b:
- 0.416666666666667
- rated current ul use group c:
- 0.416666666666667
- rated surge voltage ii 2:
- 2.5 kV
- rated surge voltage iii 2:
- 2.5 kV
- rated surge voltage iii 3:
- 2.5 kV
- rated voltage csa use group b:
- 150 V
- rated voltage iii 2:
- 160 V
- rated voltage ul use group b:
- 150 V
- rated voltage ul use group c:
- 50 V
- ratings per:
- IEC/EN 60664-1
- safety information 1:
- The MCS MULTI CONNECTION SYSTEM includes connectors without breaking capacity in accordance with DIN EN 61984. When used as intended, these connectors must not be connected/disconnected when live or under load. The circuit design should ensure
- solder pin arrangement:
- Over the entire male connector (in-line)
- solder pin dimensions:
- 0.8 x 0.8 mm
- solder pin length:
- 3.8 mm
- weight:
- 2.990 g
- width:
- 25.6 mm / 1.008 inch
