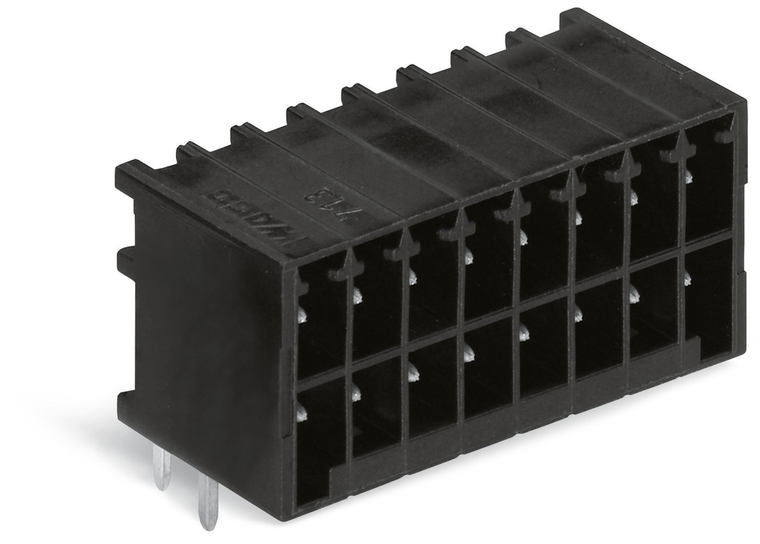

WAGO 713-1426 THT Male Header, 2-Row, 12-Pole, 0.8 x 0.8 mm Solder Pins, Angled, 3.5 mm Pin Spacing, Black
Wago
$4.70
THT male header, 2-row; 0.8 x 0.8 mm solder pin; angled; 100% protected against mismating; Pin spacing 3.5 mm; 12-pole; black.
The WAGO component equivalent to 7131426 is a specific type of electrical connector or terminal block used for various wiring applications. It is designed to provide secure and reliable connections in electrical circuits, ensuring efficient conductivity and safety. This component is typically used in industrial, commercial, and residential electrical installations, offering features such as easy installation, durability, and compatibility with different wire sizes and types. The equivalent WAGO component ensures that users can achieve the same level of performance and reliability as the original part number 7131426.
- approvals per:
- CSA
- color:
- Black
- connector connection type:
- For PCB
- contact material:
- Electrolytic copper (ECu)
- contact plating:
- Tin-plated
- contact type pluggable connector:
- Male connector/plug
- country of origin sales organisation germany:
- PL
- depth:
- 13.5 mm / 0.531 inch
- drilled hole diameter with tolerance:
- 1.2 (+0.1) mm
- fire load:
- 0.069 MJ
- flammability class per ul94:
- V0
- height:
- 17.1 mm / 0.673 inch
- height from the surface:
- 13.3 mm / 0.524 inch
- insulation material:
- Polyphthalamide (PPA GF)
- legend ratings:
- (III / 2) Overvoltage category III / Pollution degree 2
- limit temperature range:
- -60 +100 C
- locking of plug in connection:
- Without
- material group:
- I
- mating direction to the pcb:
- 0
- mismating protection:
- Yes
- nominal voltage ii 2:
- 250 V
- nominal voltage iii 3:
- 80 V
- number of solder pins per potential:
- 1
- packaging type:
- Box
- pcb contact:
- THT
- pin spacing:
- 3.5 mm / 0.138 inch
- pole no:
- 12
- rated current:
- 0.416666666666667
- rated current csa use group b:
- 0
- rated current ul use group b:
- 0.416666666666667
- rated current ul use group c:
- 0.416666666666667
- rated surge voltage ii 2:
- 2.5 kV
- rated surge voltage iii 2:
- 2.5 kV
- rated surge voltage iii 3:
- 2.5 kV
- rated voltage csa use group b:
- 150 V
- rated voltage iii 2:
- 160 V
- rated voltage ul use group b:
- 150 V
- rated voltage ul use group c:
- 50 V
- ratings per:
- IEC/EN 60664-1
- safety information 1:
- The MCS MULTI CONNECTION SYSTEM includes connectors without breaking capacity in accordance with DIN EN 61984. When used as intended, these connectors must not be connected/disconnected when live or under load. The circuit design should ensure
- solder pin arrangement:
- Over the entire male connector (in-line)
- solder pin dimensions:
- 0.8 x 0.8 mm
- solder pin length:
- 3.8 mm
- weight:
- 3.430 g
- width:
- 22.5 mm / 0.886 inch
