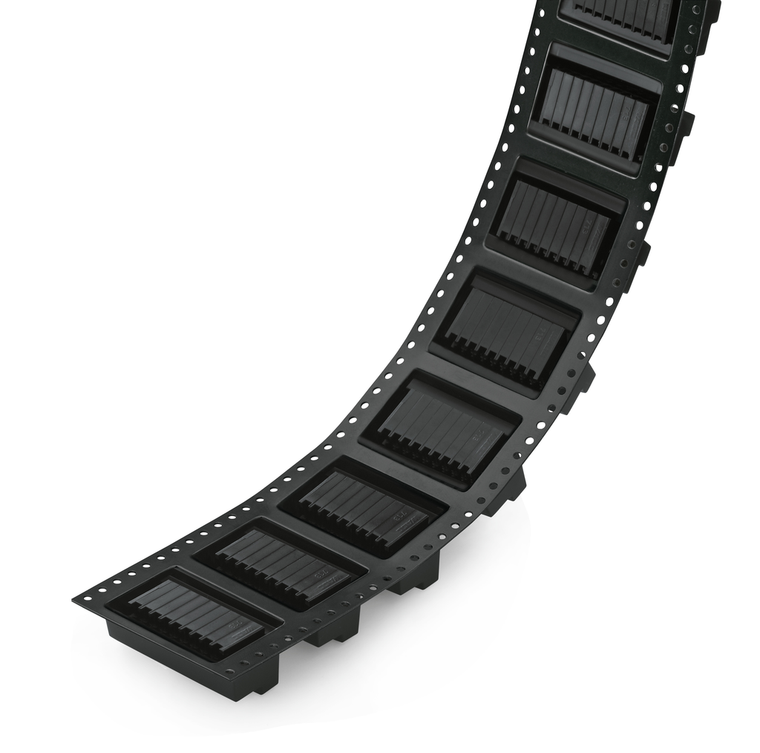

WAGO 713-1427/116-000/997-407 14-Pole THR Male Header, 2-Row, 0.8 x 0.8 mm Solder Pins, Angled, Black, Pack of 120
Wago
$768.00
THR male header, 2-row; 0.8 x 0.8 mm solder pin; angled; 100% protected against mismating; Levers; in tape-and-reel packaging; Pin spacing 3.5 mm; 14-pole; black.
The WAGO component equivalent to 7131427116000997407 is a specific part or product within the WAGO catalog, likely identified by a unique product number or code. This component is used in various electrical and automation applications, providing reliable connectivity and performance. WAGO is known for its high-quality products that cater to a wide range of industrial needs, ensuring efficient and safe operations. The equivalent component would match the specifications and functionality of the original part, ensuring compatibility and seamless integration into existing systems.
- approvals per:
- CSA
- Color:
- Black
- connector connection type:
- For PCB
- contact material:
- Electrolytic copper (ECu)
- contact plating:
- Tin-plated
- contact type pluggable connector:
- Male connector/plug
- country of origin sales organisation germany:
- DE
- depth:
- 13.5 mm / 0.531 inch
- fire load:
- 9.840 MJ
- flammability class per ul94:
- V0
- height:
- 15.7 mm / 0.618 inch
- height from the surface:
- 13.3 mm / 0.524 inch
- insulation material:
- Polyphthalamide (PPA GF)
- legend ratings:
- (III / 2) « Overvoltage category III / Pollution degree 2
- limit temperature range:
- -60 ª +100 C
- locking of plug in connection:
- Locking lever
- material group:
- I
- mating direction to the pcb:
- 0
- mismating protection:
- Yes
- nominal voltage ii 2:
- 250 V
- nominal voltage iii 3:
- 80 V
- number of solder pins per potential:
- 1
- packaging type:
- Bag
- pcb contact:
- THR
- pin spacing:
- 3.5 mm / 0.138 inch
- plated through hole diameter thr:
- 1.3 (+0.1) mm
- pole no:
- 14
- rated current:
- 0.416666666666667
- rated current csa use group b:
- 0
- rated current ul use group b:
- 0.416666666666667
- rated current ul use group c:
- 0.416666666666667
- rated surge voltage ii 2:
- 2.5 kV
- rated surge voltage iii 2:
- 2.5 kV
- rated surge voltage iii 3:
- 2.5 kV
- rated voltage csa use group b:
- 150 V
- rated voltage iii 2:
- 160 V
- rated voltage ul use group b:
- 150 V
- rated voltage ul use group c:
- 50 V
- ratings per:
- IEC/EN 60664-1
- reel diameter of tape and reel packaging:
- 330 mm
- safety information 1:
- The MCS ´ MULTI CONNECTION SYSTEM includes connectors without breaking capacity in accordance with DIN EN 61984. When used as intended, these connectors must not be connected/disconnected when live or under load. The circuit design should ensure
- solder pin arrangement:
- Over the entire male connector (in-line)
- solder pin dimensions:
- 0.8 x 0.8 mm
- solder pin length:
- 2.4 mm
- tape width:
- 56 mm
- weight:
- 4.392 g
- width:
- 32.6 mm / 1.283 inch
