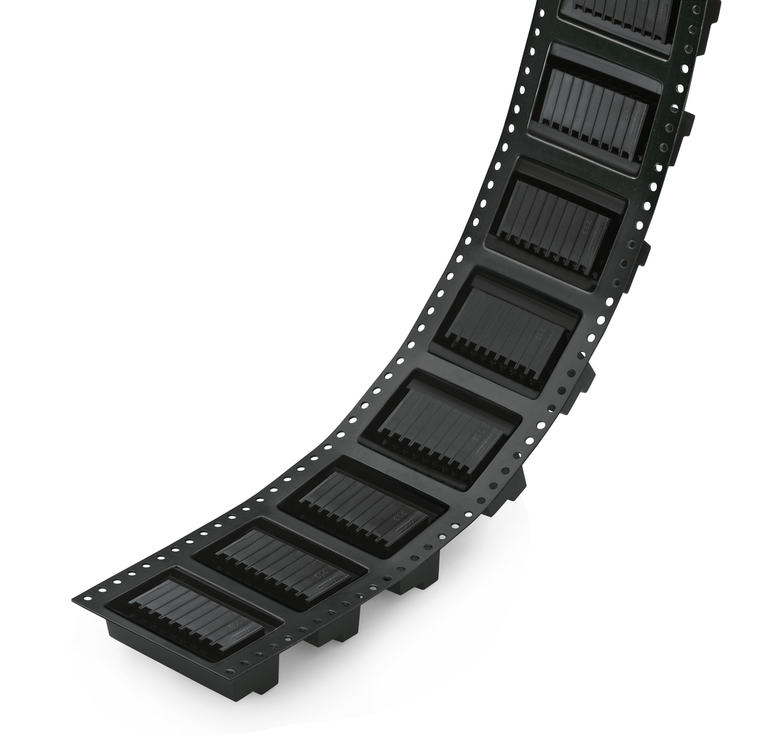

WAGO 713-1434/116-000/997-408 THR male header, 2-row, 28-pole, 0.8 x 0.8 mm solder pin, angled, black, pack of 120
Wago
$1,459.20
THR male header, 2-row0.8 x 0.8 mm solder pin angled, black.
The WAGO component equivalent to 7131434116000997408 is a specific part or module used in electrical and automation systems. WAGO is known for producing high-quality components that ensure reliable connections and efficient performance in various industrial applications. This particular component is likely part of their extensive range of products designed to meet the needs of modern automation and control systems, providing robust and dependable solutions for complex electrical setups.
- approvals per:
- CSA
- color:
- Black
- connector connection type:
- For PCB
- contact material:
- Electrolytic copper (ECu)
- contact plating:
- Tin-plated
- contact type pluggable connector:
- Male connector/plug
- country of origin sales organisation germany:
- DE
- depth:
- 13.5 mm / 0.531 inch
- fire load:
- 0.000 MJ
- flammability class per ul94:
- V0
- height:
- 15.7 mm / 0.618 inch
- height from the surface:
- 13.3 mm / 0.524 inch
- insulation material:
- Polyphthalamide (PPA GF)
- legend ratings:
- (III / 2) Overvoltage category III / Pollution degree 2
- limit temperature range:
- -60 +100 C
- locking of plug in connection:
- Locking lever
- material group:
- I
- mating direction to the pcb:
- 0
- mismating protection:
- Yes
- nominal voltage ii 2:
- 250 V
- nominal voltage iii 3:
- 80 V
- number of solder pins per potential:
- 1
- packaging type:
- Bag
- pcb contact:
- THR
- pin spacing:
- 3.5 mm / 0.138 inch
- plated through hole diameter thr:
- 1.3 (+0.1) mm
- pole no:
- 28
- rated current:
- 0.416666666666667
- rated current csa use group b:
- 0
- rated current ul use group b:
- 0.416666666666667
- rated current ul use group c:
- 0.416666666666667
- rated surge voltage ii 2:
- 2.5 kV
- rated surge voltage iii 2:
- 2.5 kV
- rated surge voltage iii 3:
- 2.5 kV
- rated voltage csa use group b:
- 150 V
- rated voltage iii 2:
- 160 V
- rated voltage ul use group b:
- 150 V
- rated voltage ul use group c:
- 50 V
- ratings per:
- IEC/EN 60664-1
- reel diameter of tape and reel packaging:
- 330 mm
- safety information 1:
- The MCS MULTI CONNECTION SYSTEM includes connectors without breaking capacity in accordance with DIN EN 61984. When used as intended, these connectors must not be connected/disconnected when live or under load. The circuit design should ensure
- solder pin arrangement:
- Over the entire male connector (in-line)
- solder pin dimensions:
- 0.8 x 0.8 mm
- solder pin length:
- 2.4 mm
- tape width:
- 72 mm
- weight:
- 8.314 g
- width:
- 57.1 mm / 2.248 inch
