Wago

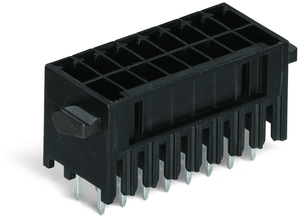

WAGO 713-1498/037-000

SKU:

713-1498/037-000

UPC:

MPN:

713-1498/037-000

Condition:

New

approvals per:

UL 1059

color:

Black

contact material:

Electrolytic copper (ECu)

contact plating:

Tin-plated

country of origin sales organisation germany:

DE

depth:

20 mm / 0.787 inch

fire load:

0.000 MJ

flammability class per ul94:

V0

height:

26.6 mm / 1.047 inch

insulation material:

Glass fiber-reinforced polyamide (PA66 GF)

legend ratings:

(III / 2) Overvoltage category III / Pollution degree 2

limit temperature range:

-60 +100 C

locking of plug in connection:

Locking lever

material group:

I

mating direction to the pcb:

0

mismating protection:

Yes

nominal voltage ii 2:

250 V

nominal voltage iii 3:

80 V

packaging type:

Box

pin spacing:

3.5 mm / 0.138 inch

pole no:

36

rated current:

0.416666666666667

rated current csa use group b:

0.416666666666667

rated current ul use group b:

0.416666666666667

rated current ul use group c:

0.416666666666667

rated surge voltage ii 2:

2.5 kV

rated surge voltage iii 2:

2.5 kV

rated surge voltage iii 3:

2.5 kV

rated voltage csa use group b:

300 V

rated voltage iii 2:

160 V

rated voltage ul use group b:

300 V

rated voltage ul use group c:

50 V

ratings per:

IEC/EN 60664-1

safety information 1:

The MCS MULTI CONNECTION SYSTEM includes connectors without breaking capacity in accordance with DIN EN 61984. When used as intended, these connectors must not be connected/disconnected when live or under load. The circuit design should ensure

weight:

18.640 g

width:

88.5 mm / 3.49 inch
