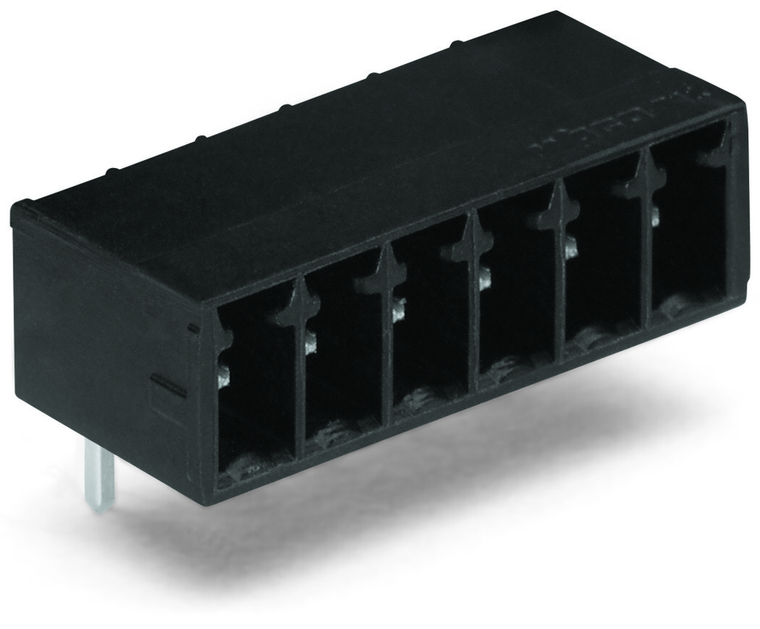

WAGO 714-166 THT male header; 0.8 x 0.8 mm solder pin; angled; pin spacing 3.5 mm; 6-pole; black
Wago
$2.80
THT male header; 0.8 x 0.8 mm solder pin; angled; Pin spacing 3.5 mm; 6-pole
- Male headers may be mounted horizontally or vertically via straight or angled solder pins
- Header housing is molded of THR-compatible insulation material for lead-free reflow soldering
- Separated pin slots prevent damage and make the headers touch-proof when unplugged
- Coding pins available
The WAGO component equivalent to 714166 is a specific type of electrical connector or terminal block used for various wiring applications. It is designed to provide secure and reliable connections in electrical circuits, ensuring efficient conductivity and safety. This component is commonly used in industrial, commercial, and residential electrical installations, offering ease of use and durability. It is part of WAGO's extensive range of electrical interconnection products, known for their high quality and performance standards.
- approvals per:
- UL 1059
- color:
- Black
- connector connection type:
- For PCB
- contact material:
- Electrolytic copper (ECu)
- contact plating:
- Tin-plated
- contact type pluggable connector:
- Male connector/plug
- country of origin sales organisation germany:
- DE
- depth:
- 9.7 mm / 0.382 inch
- drilled hole diameter with tolerance:
- 1.2 (+0.1) mm
- fire load:
- 0.026 MJ
- flammability class per ul94:
- V0
- height:
- 10.3 mm / 0.406 inch
- height from the surface:
- 6.9 mm / 0.272 inch
- insulation material:
- Polyphthalamide (PPA GF)
- legend ratings:
- (III / 2) Overvoltage category III / Pollution degree 2
- limit temperature range:
- -60 +100 C
- material group:
- I
- mating direction to the pcb:
- 0
- mismating protection:
- No
- nominal voltage ii 2:
- 320 V
- nominal voltage iii 3:
- 160 V
- number of solder pins per potential:
- 1
- packaging type:
- Box
- pcb contact:
- THT
- pin spacing:
- 3.5 mm / 0.138 inch
- pole no:
- 6
- rated current:
- 0.333333333333333
- rated current ul use group b:
- 0.333333333333333
- rated surge voltage ii 2:
- 2.5 kV
- rated surge voltage iii 2:
- 2.5 kV
- rated surge voltage iii 3:
- 2.5 kV
- rated voltage iii 2:
- 160 V
- rated voltage ul use group b:
- 150 V
- ratings per:
- IEC/EN 60664-1
- safety information 1:
- The MCS MULTI CONNECTION SYSTEM includes connectors without breaking capacity in accordance with DIN EN 61984. When used as intended, these connectors must not be connected/disconnected when live or under load. The circuit design should ensure
- solder pin arrangement:
- Over the entire male connector (in-line)
- solder pin dimensions:
- 0.8 x 0.8 mm
- solder pin length:
- 3.4 mm
- weight:
- 1.318 g
- width:
- 22.4 mm / 0.882 inch
