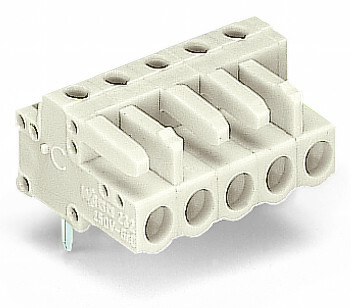

THT female header; angled; Pin spacing 5 mm; 11-pole; 100% protected against mismating; 0.6 x 1.0 mm solder pin; light gray.
The WAGO component equivalent to 722241 is a specific type of electrical connector or terminal block used for various wiring applications. It is designed to provide secure and reliable connections in electrical circuits, ensuring efficient conductivity and safety. This component is commonly used in industrial, commercial, and residential electrical installations, offering ease of use and compatibility with a range of wire sizes and types.
- approvals per:
- UL 1059
- color:
- Light gray
- connector connection type:
- For PCB
- contact material:
- Copper alloy
- contact plating:
- Tin-plated
- contact type pluggable connector:
- Female connector/socket
- country of origin sales organisation germany:
- DE
- depth:
- 18.25 mm / 0.719 inch
- drilled hole diameter with tolerance:
- 1.3 (+0.1) mm
- fire load:
- 0.170 MJ
- flammability class per ul94:
- V0
- height:
- 16.6 mm / 0.654 inch
- height from the surface:
- 11.6 mm / 0.457 inch
- insulation material:
- Polyamide (PA66)
- legend ratings:
- (III / 2) Overvoltage category III / Pollution degree 2
- limit temperature range:
- -60 +85 C
- locking of plug in connection:
- Without
- material group:
- I
- mating direction to the pcb:
- 0
- mismating protection:
- Yes
- nominal voltage ii 2:
- 630 V
- nominal voltage iii 3:
- 320 V
- number of solder pins per potential:
- 1
- packaging type:
- Box
- pcb contact:
- THT
- pin spacing:
- 5 mm / 0.197 inch
- pole no:
- 11
- rated current:
- 0
- rated current csa use group b:
- 15 A
- rated current csa use group d:
- 0.416666666666667
- rated current ul 1977:
- 15 A
- rated current ul use group b:
- 15 A
- rated current ul use group d:
- 0.416666666666667
- rated surge voltage ii 2:
- 4 kV
- rated surge voltage iii 2:
- 4 kV
- rated surge voltage iii 3:
- 4 kV
- rated voltage csa use group b:
- 300 V
- rated voltage csa use group d:
- 300 V
- rated voltage iii 2:
- 320 V
- rated voltage ul 1977:
- 600 V
- rated voltage ul use group b:
- 300 V
- rated voltage ul use group d:
- 300 V
- ratings per:
- IEC/EN 60664-1
- safety information 1:
- The MCS MULTI CONNECTION SYSTEM includes connectors without breaking capacity in accordance with DIN EN 61984. When used as intended, these connectors must not be connected/disconnected when live or under load. The circuit design should ensure
- solder pin arrangement:
- Over the entire female connector (in-line)
- solder pin dimensions:
- 0.6 x 1 mm
- solder pin length:
- 5 mm
- weight:
- 10.250 g
- width:
- 56.5 mm / 2.224 inch
