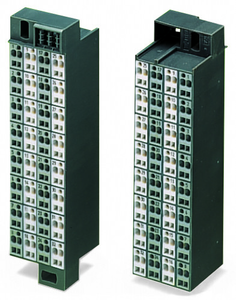

Matrix patchboard; 32-pole; Marking 33-64; Colors of modules: gray/white; Module marking, side 1 and 2 vertical; 1,50 mm²; dark gray.
The WAGO 726 series marked matrix patchboard is a 1-deck/level module with "33-64" marking, featuring 32 feed-through poles arranged in 4 columns and 8 points, each accommodating 3 wires, totaling 96 wires (clamps). It supports wire sizes from 0.08mm² to 1.5mm² or #28AWG to #16AWG, with a rated current of 10A. The module includes CAGE CLAMP spring connections and is designed for surface mounting, equivalent to model 726122. The module is available in a gray/white color scheme.
- actuation type:
- Operating tool
- color:
- Dark gray
- connectable conductor materials:
- Copper
- connection technology:
- CAGE CLAMP
- connection type 1:
- Page 1
- connection type 2:
- Page 2
- country of origin sales organisation germany:
- DE
- depth:
- 36.5 mm / 1.437 inch
- fine stranded conductor:
- 0.08 1.5 mm / 28 16 AWG
- fine stranded conductor 2:
- 0.08 1.5 mm / 28 16 AWG
- fire load:
- 1.840 MJ
- height:
- 132 mm / 5.197 inch
- legend ratings:
- (III / 3) Overvoltage category III / Pollution degree 3
- marking:
- A
- module color:
- White/gray
- nominal voltage iii 3:
- 500 V
- number of connection points:
- 3
- number of connection points 2:
- 3
- packaging type:
- Box
- pole no:
- 32
- rated current:
- 0.416666666666667
- rated surge voltage iii 3:
- 6 kV
- solid conductor:
- 0.08 1.5 mm / 28 16 AWG
- solid conductor 2:
- 0.08 1.5 mm / 28 16 AWG
- strip length:
- 8 10 mm / 0.31 0.39 inch
- weight:
- 167.002 g
- width:
- 44 mm / 1.732 inch
- wiring direction:
- Front-entry wiring
