Matrix patchboard; Marking 1-48; Color of modules: blue; Numbering of modules on sides 1 and 2 arranged vertically and horizontally; suitable for Ex i applications; 48-pole
Electrical Data
- Rated voltage (III / 3): 500 V
- Rated impulse voltage (III / 3): 6 kV
- Rated current: 10 A
- Legend (ratings): (III / 3) Overvoltage category III / Pollution degree 3
Connection Data
- Connection type (1): Side 1
- Connection technology: CAGE CLAMP<sup></sup>
- Number of connection points (connection type): 3
- Actuation type: Operating tool
- Connectable conductor materials: Copper
- Solid conductor: 0.08 1.5 mm / 28 16 AWG
- Fine-stranded conductor: 0.08 1.5 mm / 28 16 AWG
- Strip length: 8 10 mm / 0.31 0.39 inch
- No. of poles: 48
- Connection type (2): Side 2
- Number of connection points: 3
- Type of wiring: Front-entry wiring
Geometrical Data
- Width: 65.3 mm / 2.571 inch
- Height: 132 mm / 5.197 inch
- Depth: 36.5 mm / 1.437 inch
Mechanical Data
- Marking: 1 48
Material Data
- Color: dark gray
- Module color: blue
- Fire load: 4.096 MJ
- Weight: 243.484 g
Commercial data
- Packaging type: BOX
- Country of origin: DE
- GTIN: 4044918455510
- Customs Tariff No.: 85369010000

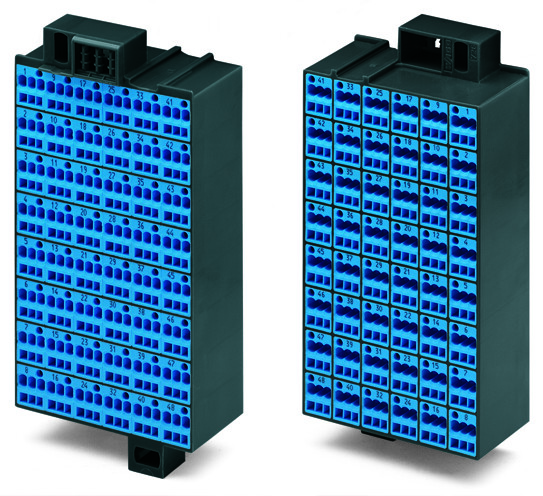

The WAGO 726 series marked matrix patchboard is a blue module designed for Ex I applications, featuring "1-48" marking and 48 feed-through poles arranged in 6 columns and 8 points, each accommodating 3 wires, totaling 144 wires (clamps). It supports wire sizes from 0.08mm² to 1.5mm² (#28AWG to #16AWG) and is rated for a current of 10A. The patchboard utilizes CAGE CLAMP spring connections and is intended for surface mounting, equivalent to model 726441.
- actuation type:
- Operating tool
- color:
- Dark gray
- connectable conductor materials:
- Copper
- connection technology:
- CAGE CLAMP
- connection type 1:
- Page 1
- connection type 2:
- Page 2
- country of origin sales organisation germany:
- DE
- depth:
- 36.5 mm / 1.437 inch
- fine stranded conductor:
- 0.08 1.5 mm / 28 16 AWG
- fine stranded conductor 2:
- 0.08 1.5 mm / 28 16 AWG
- fire load:
- 2.736 MJ
- height:
- 132 mm / 5.197 inch
- legend ratings:
- (III / 3) Overvoltage category III / Pollution degree 3
- marking:
- 1 48
- module color:
- Blue
- nominal voltage iii 3:
- 500 V
- number of connection points:
- 3
- number of connection points 2:
- 3
- packaging type:
- Box
- pole no:
- 48
- rated current:
- 0.416666666666667
- rated surge voltage iii 3:
- 6 kV
- solid conductor:
- 0.08 1.5 mm / 28 16 AWG
- solid conductor 2:
- 0.08 1.5 mm / 28 16 AWG
- strip length:
- 8 10 mm / 0.31 0.39 inch
- weight:
- 243.484 g
- width:
- 65.3 mm / 2.571 inch
- wiring direction:
- Front-entry wiring
