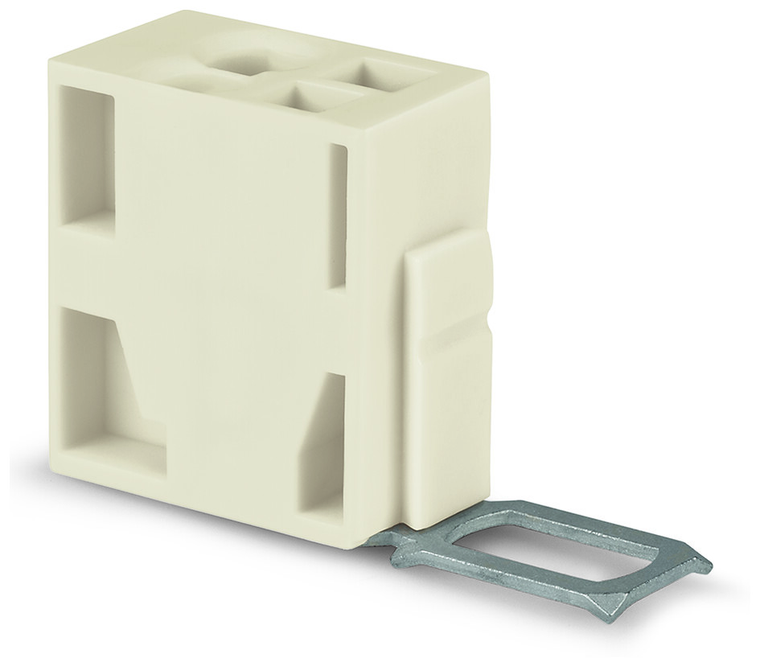

Additional module for matrix patchboards; for snap-on fixing to mounting adapter; with contact to mounting frame; with CAGE CLAMP; 4,00 mm²; white.
The WAGO 726 series matrix patchboard is a white, surface-mounted component featuring a single feed-through pole (1P) with two clamps for connecting two wires. It accommodates wire sizes ranging from 0.08mm² to 4mm² or #28AWG to #12AWG and supports a rated current of 10A. The patchboard utilizes CAGE CLAMP spring connections for secure and reliable wire attachment and is equivalent to model 726903.
- color:
- White
- connection technology:
- CAGE CLAMP
- country of origin sales organisation germany:
- DE
- depth:
- 20 mm / 0.787 inch
- fine stranded conductor:
- 0.08 4 mm / 28 12 AWG
- fire load:
- 0.073 MJ
- height:
- 18.1 mm / 0.713 inch
- nominal voltage iii 3:
- 500 V
- packaging type:
- Box
- rated current:
- 0.416666666666667
- rated surge voltage iii 3:
- 4 kV
- solid conductor:
- 0.08 4 mm / 28 12 AWG
- strip length:
- 9 mm / 0.35 inch
- weight:
- 4.653 g
- width:
- 10.4 mm / 0.409 inch
- wiring direction:
- Front-entry wiring
