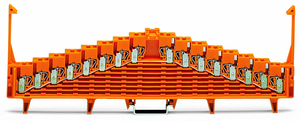

WAGO 727-136 8-Level Same Potential Terminal Block, 18 A, 250 V, Orange
Wago
$35.77
8-level same potential terminal block; without locking clips; all clamping units internally commoned; with 2.3 mm à test port; for 35 x 15 mounting rail; 1.5 mm²; 1,50 mm²; orange.
The WAGO 727 series is an orange feed-through common potential terminal block with 8 levels and a center marking slot, designed for a single feed-through pole (1P) and capable of handling 32 wires (16 clamps on each side). It supports wire sizes from 0.08mm² to 1.5mm² or #28AWG to #16AWG, with a rated current of 18A. The terminal block features CAGE CLAMP spring connections and is mounted on a DIN-35 rail (35 x 15) with a width of 7.62mm, equivalent to model 727136.
- actuation type:
- Operating tool
- color:
- Orange
- connectable conductor materials:
- Copper
- connection technology:
- CAGE CLAMP
- country of origin sales organisation germany:
- DE
- depth from upper edge of din rail:
- 58.5 mm / 2.303 inch
- design:
- Horizontal type
- fine stranded conductor:
- 0.08 1.5 mm / 28 16 AWG
- fire load:
- 1.187 MJ
- flammability class per ul94:
- V0
- height:
- 226 mm / 8.898 inch
- insulation material:
- Polyamide (PA66)
- legend ratings:
- (III / 3) Overvoltage category III / Pollution degree 3
- marking:
- Plain
- marking level:
- Center marking
- mounting type:
- DIN-35 rail
- nominal voltage iii 3:
- 250 V
- packaging type:
- Box
- rated current:
- 18 A
- rated surge voltage iii 3:
- 4 kV
- solid conductor:
- 0.08 1.5 mm / 28 16 AWG
- strip length:
- 8 10 mm / 0.31 0.39 inch
- weight:
- 62.230 g
- width:
- 7.62 mm / 0.3 inch
- wiring direction:
- Front-entry wiring
