4-level tb for matrix patchinggray.

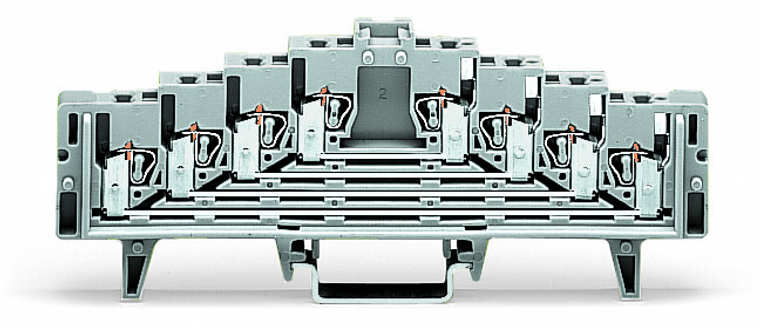

The WAGO 727 series feed-through terminal block is designed for matrix patching with four decks/levels and features a center marking slot with "a-b-c-d--d-c-b-a" marking. It is gray in color and accommodates four feed-through poles, supporting 16 wires with 8 clamps on each side. Suitable for wire sizes ranging from 0.08mm² to 1.5mm² or #28AWG to #16AWG, it has a rated current of 12A and utilizes CAGE CLAMP spring connections. The terminal block mounts on a DIN-35 rail with dimensions of 35 x 7.5 mm and has a width of 7.62 mm, equivalent to model 727220022000.
- actuation type:
- Operating tool
- color:
- Gray
- connectable conductor materials:
- Copper
- connection technology:
- CAGE CLAMP
- country of origin sales organisation germany:
- DE
- depth from upper edge of din rail:
- 44.5 mm / 1.752 inch
- design:
- Horizontal type
- fine stranded conductor:
- 0.08 1.5 mm / 28 16 AWG
- fire load:
- 0.550 MJ
- flammability class per ul94:
- V0
- height:
- 126 mm / 4.961 inch
- insulation material:
- Polyamide (PA66)
- legend ratings:
- (III / 3) Overvoltage category III / Pollution degree 3
- marking:
- A-b-c-d--d-c-b-a
- marking level:
- Center marking
- mounting type:
- DIN-35 rail
- nominal voltage iii 3:
- 250 V
- packaging type:
- Box
- rated current:
- 0
- rated surge voltage iii 3:
- 4 kV
- solid conductor:
- 0.08 1.5 mm / 28 16 AWG
- strip length:
- 8 10 mm / 0.31 0.39 inch
- weight:
- 32.000 g
- width:
- 7.62 mm / 0.3 inch
- wiring direction:
- Front-entry wiring
